Board-to-Board Connector Pogo Block
Product Overview

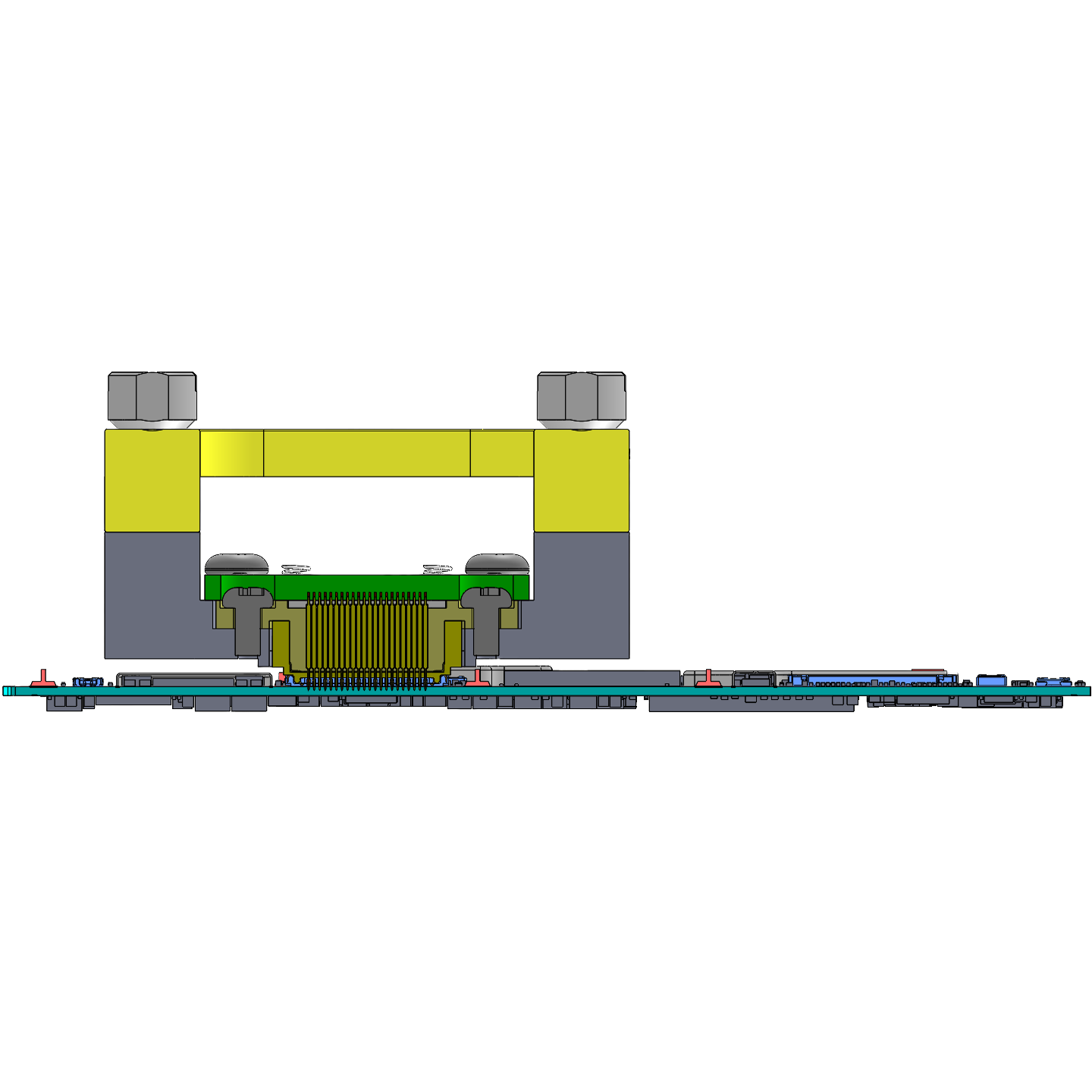

Pogo blocks provide a probing interface to board-to-board connector, turning traditional dedicated breakout boards into a customized platform for DC level, analog signals and RF signals (up to 10 GHz). Not only does Aethertek’s pogo blocks help reduce the cost of testing, but also provide higher testing efficiency through the optimization of contact with connectors.
Precision alignment
Customized design
Easy to install
Low cost & high lifecycle
Pogo Block General Features
| Specifications | |
|---|---|
| Connector Type | All kinds of connector |
| Pitch | ≥ 0.175mm |
| Resistance | < 50mΩ (Pitch dependent) |
| Temperature | -40 ~ 85℃ |
| Current Rating | 0.5 ~ 2A |
Advantages
- The probe model can be adapted according to the characteristics of the connector
- High stability structure design and excellent product life cycle
- Achieve higher efficiency through the optimization of contact with connectors

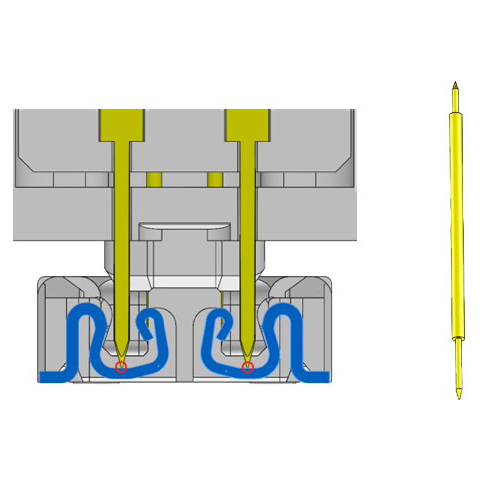

Pogo Pin
Pogo Blade

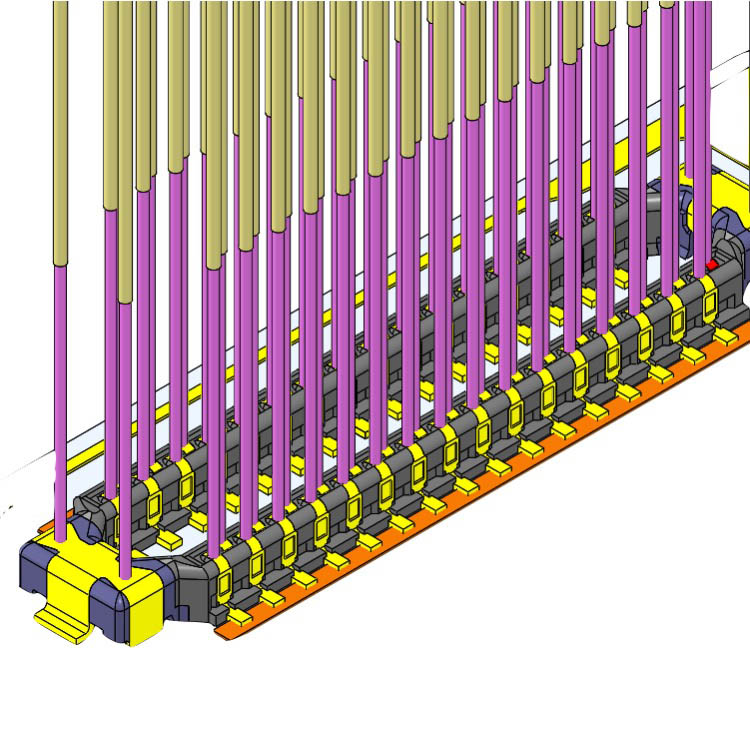

Wire Probe
1.3+
1.0
0.8
0.7
0.6
0.5
0.4
0.3
0.175
0.13
Actual Case
- Case A: SiP+FPC
- Case B: SiP Testing
- Case C: Coaxial pogo block
Case A: SiP+FPC
|
DUT Size: ≈ 38*64 mm (Include FPC) ≈ 32*34 mm |
| Pitch: ≈ 0.175 |
| Numbers of Pogo Block: 7 pcs (Pin& Blade) |
| Pogo pins on every Pogo Block: 10~64 Pin |
Case B: SiP Testing
| DUT Size: ≈ 40*40 mm |
| Pitch: 0.35 mm |
| Numbers of Pogo Block: 6 pcs |
| Pogo pins on every Pogo Block: 8~ 34 pin |
Case C: Coaxial pogo block
| DUT Size: ≈ 10.5*40.5 mm |
| Pitch: 0.35 mm |
| Numbers of Pogo Block: 2 pcs |
| Pogo pins on every Pogo Block: 8 ~ 10 pin |

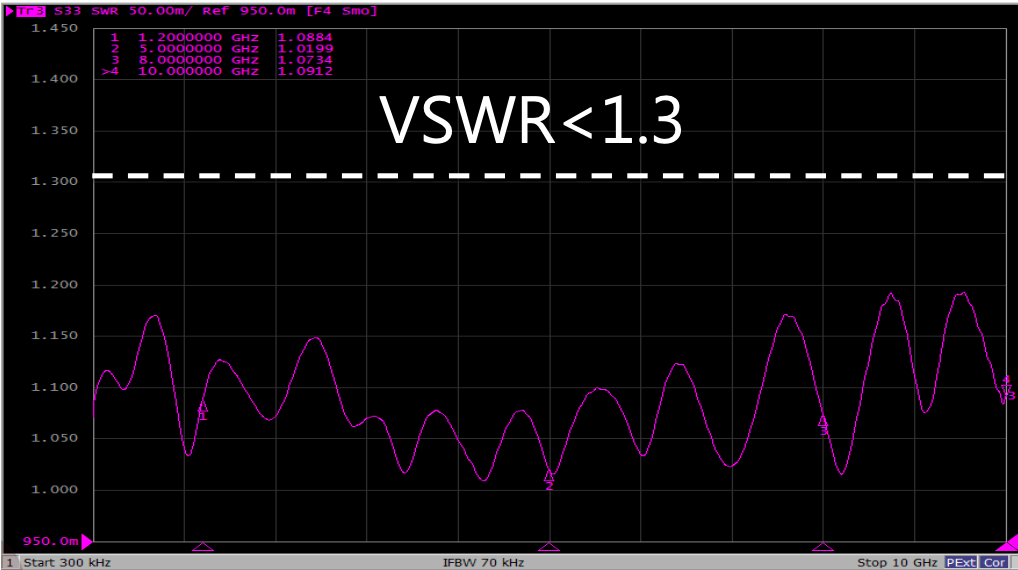

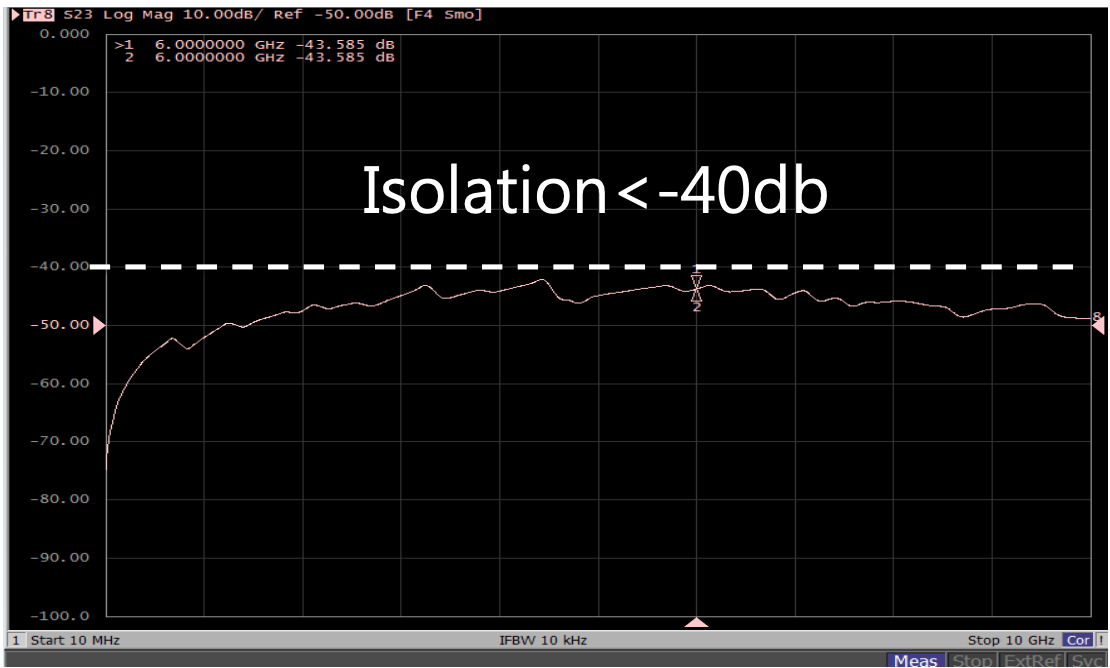

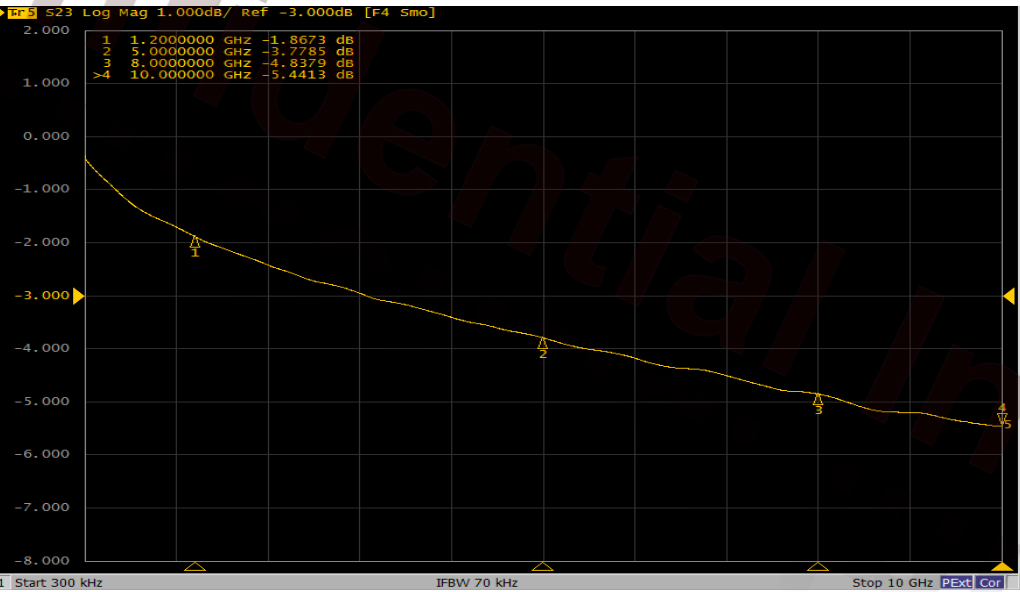

RF S-para @ 10GHz:
|
We provide customized solutions
From professional consulting to design and production, we offer customized solutions that bring higher value to your products.
