Shieldbox

Providing full ODM/ OEM design/fabrication of shielding box to meet your testing demand.

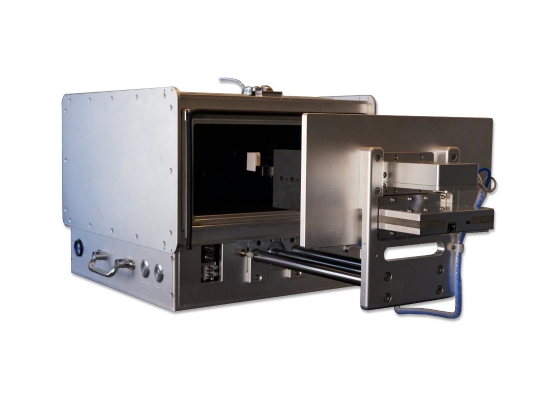

Shielding Box

Aethertek SBX RF shielding box series provides several solutions of manual and pneumatic shielding boxes with optional interfaces and accessories for devices including mobiles, laptops, tablets, wearable, VR, car and etc in different levels of PCBA, sub-assembly and final product testing.

SBX Series benefits and key features

Devices including mobiles/laptops/XR/VR/Car devices and etc in different levels of PCBA/ SUB level ASSY/Full level ASSY module usually do not have external antenna connectors. So a solid, precise radio communication surrounding is therefore needed via air transfer.

To provide a different level of radio frequency testing covering BT/3G/4G/WIFI/4.5G/5G, Trantest have a solid experience in RF testing industry, capable to provide a full ODM/ OEM design/fabrication of shielding box design to meet the customer testing concept:

Standard models specifications

Model SBX-8020 SBX-8028 SBX-8040 SBX-8050
RF frequency range 500MHz to 12GHz 500MHz to 12GHz 500MHz to 12GHz mmWave 24GHz to 44GHz
Isolation rate > 80 db > 80 db > 80 db > 80 db
Dimension W420xD603xH344 W482xD590xH433 W730xD681xH507 W660xD578xH421
Weight approx. 40KG 42KG 69KG 60KG
Door stroke 300mm 300mm 300mm 350mm
DUT interface filter module USB-A 2.0 USB-A 2.0 USB-A 2.0 USB-C 3.0

We provide customized solutions

From professional consulting to design and production, we offer customized solutions that bring higher value to your products.
