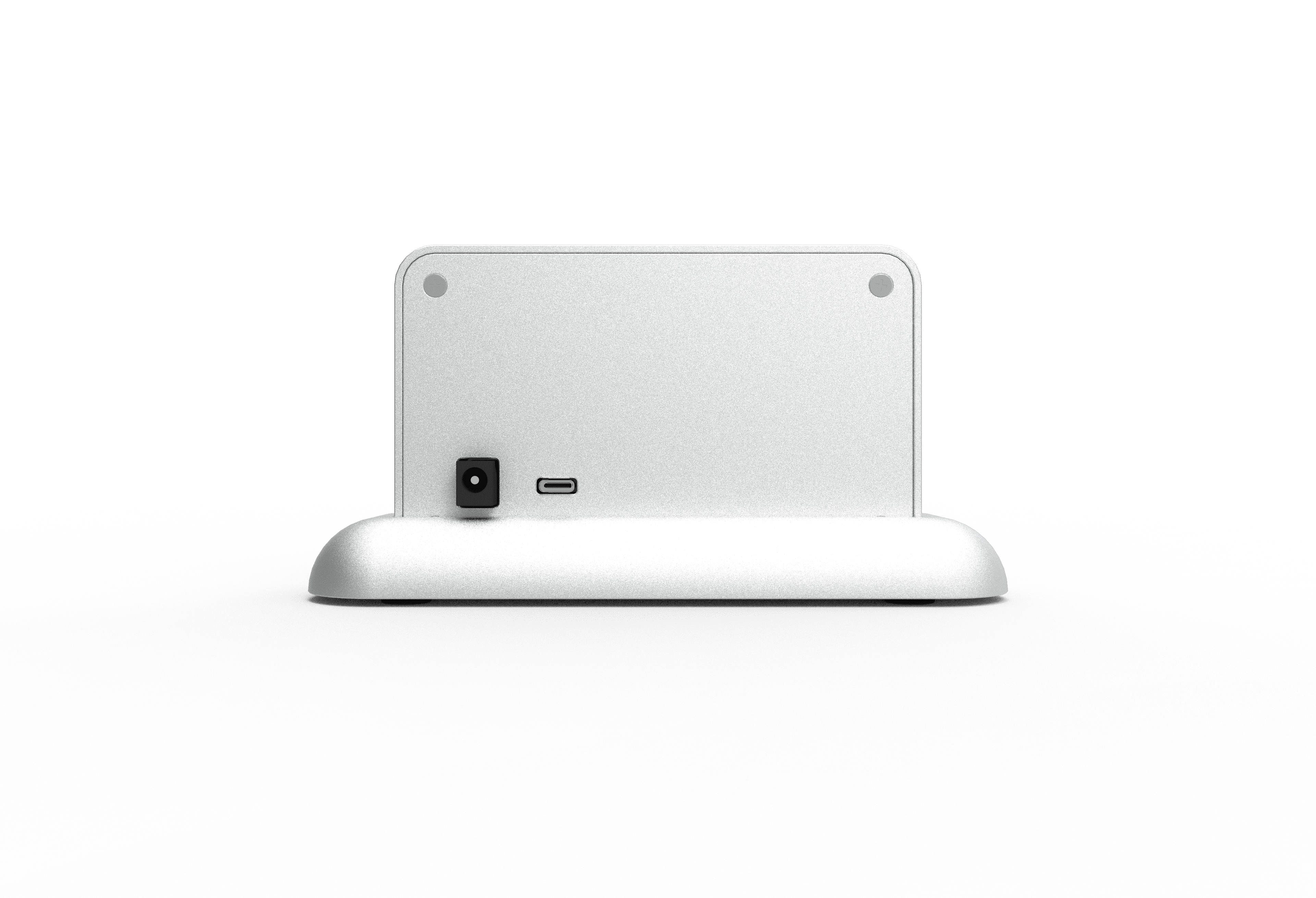

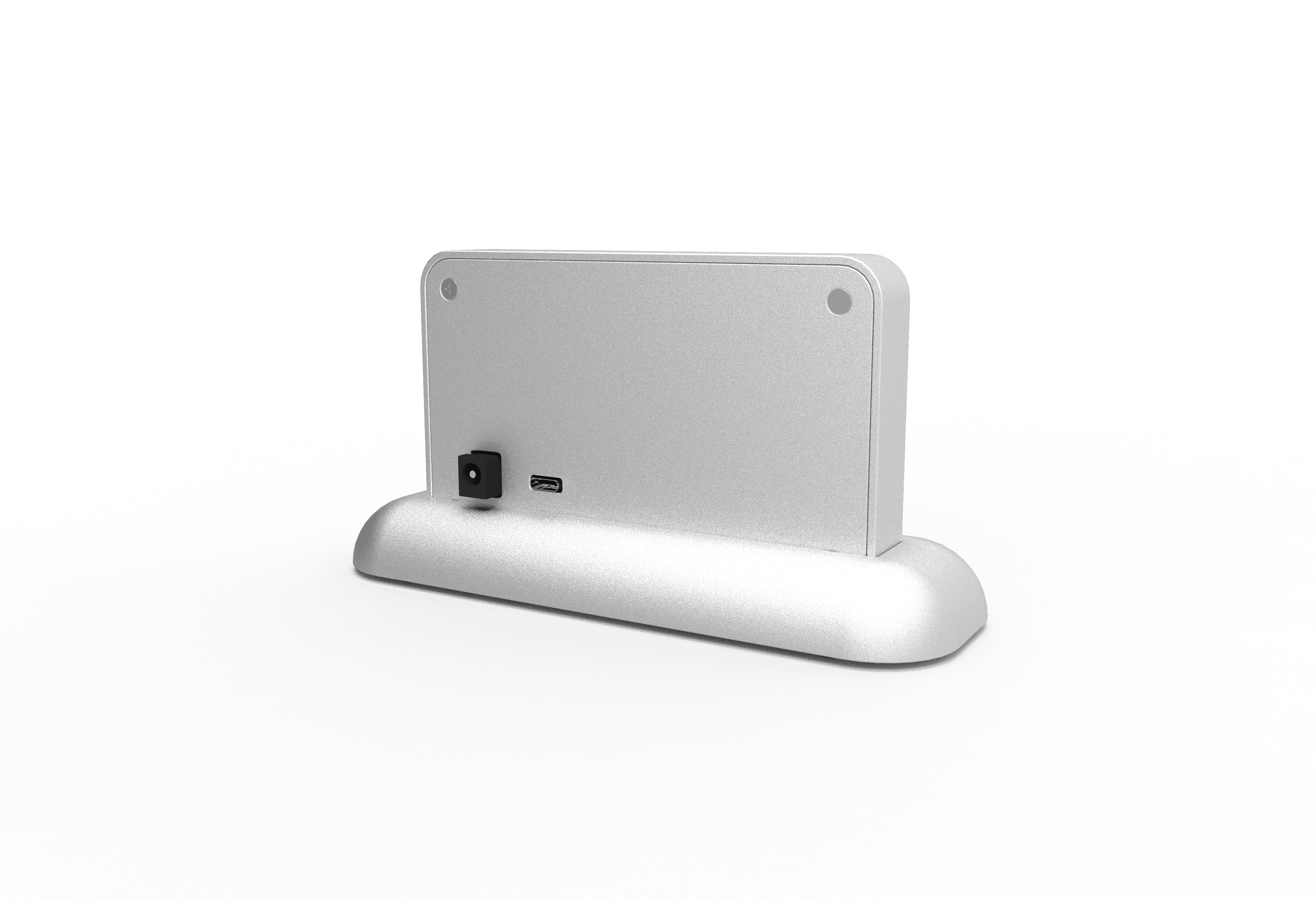

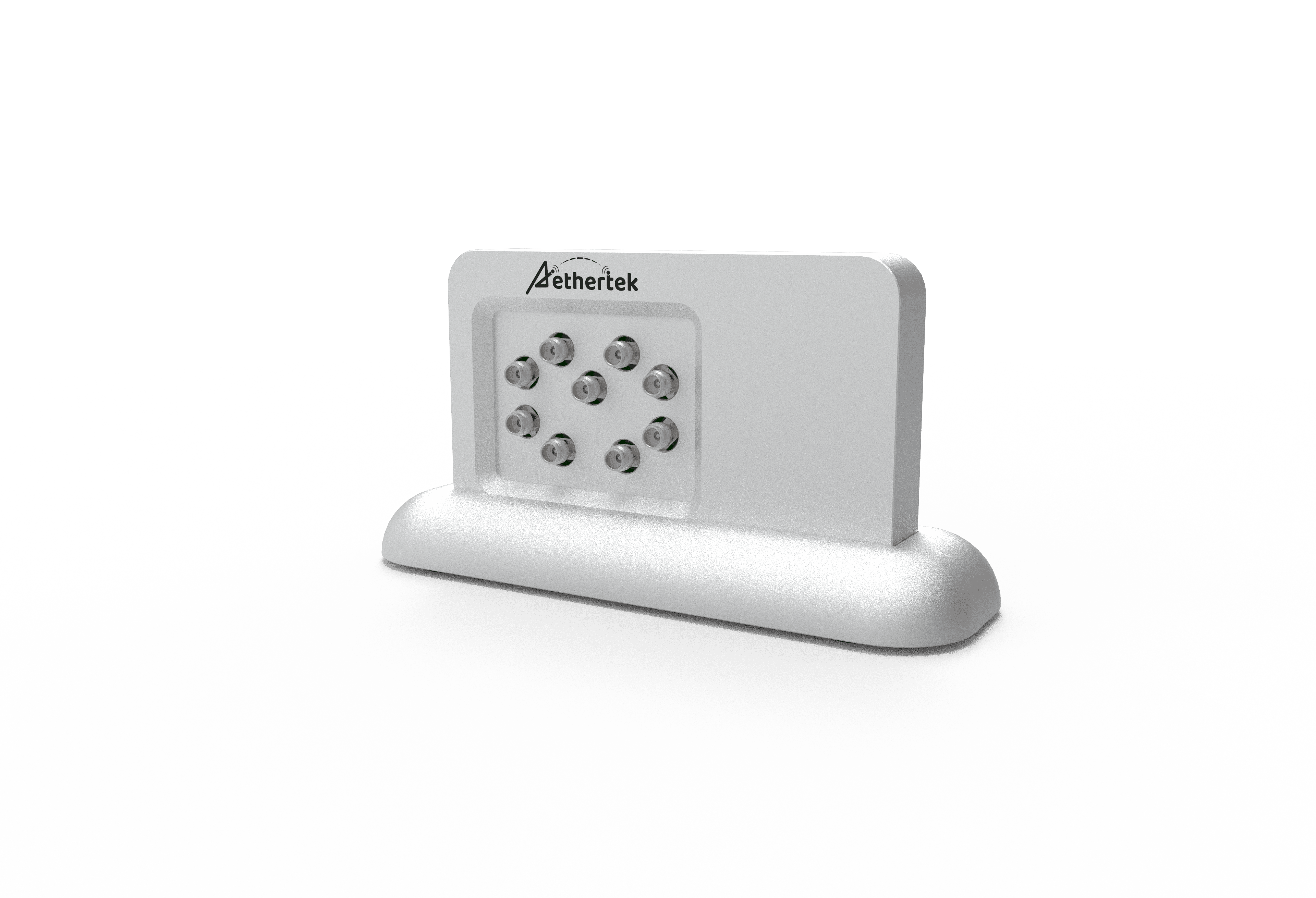

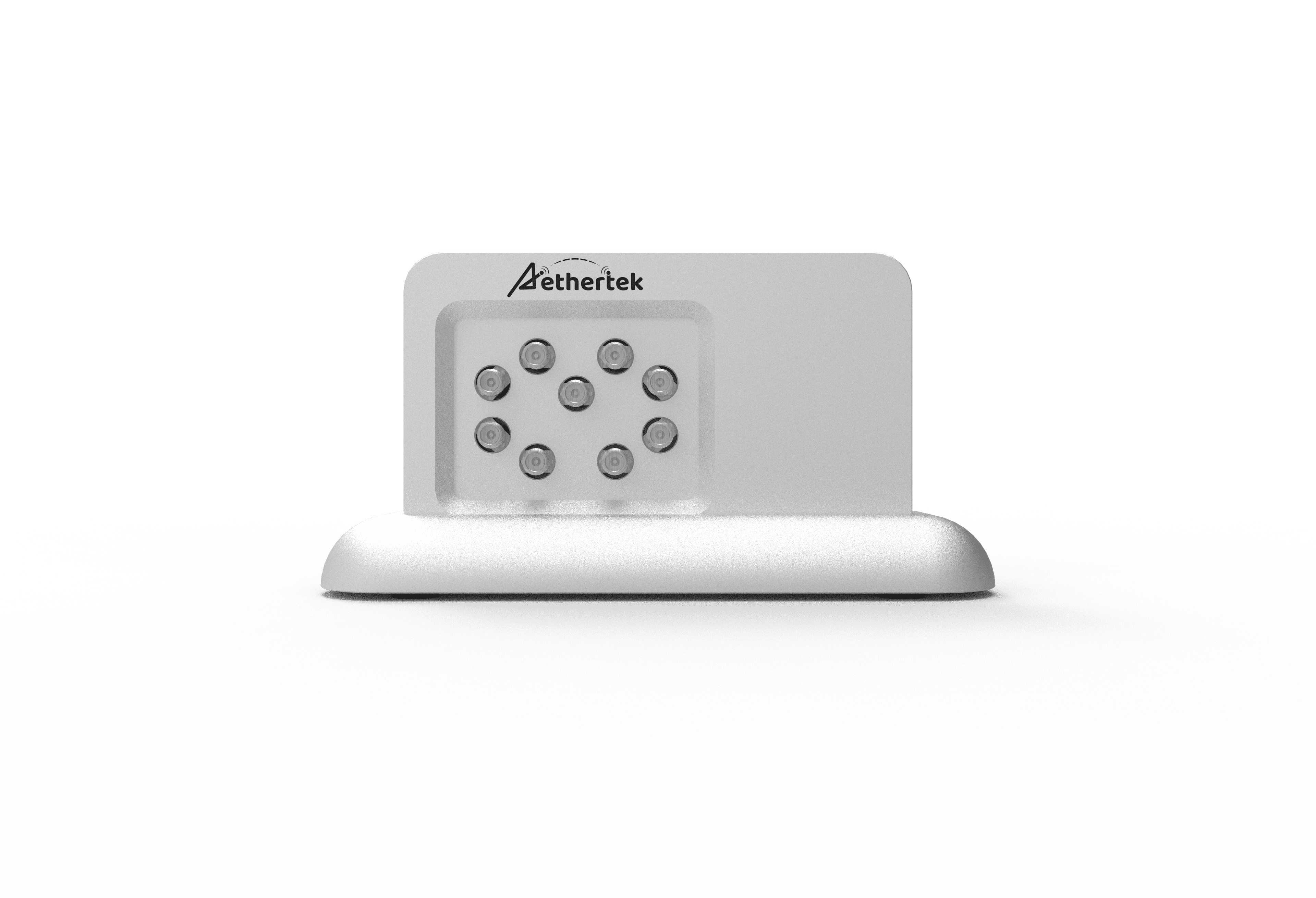

SP8T Switch

0.1-40 GHz

RF Switch

High-speed solid state switch that is ideal for test systems in mmWave applications.


  • Reliable RF SP8T switching performance
  • Extreme wide bandwidth, solid-state design
  • Great VSWR and port-to-port isolation
  • Cost efficient mmWave test solution
  • Integrated USB-to-UART interface for simple test script programming and debugging


Frequency Range100 MHz~44 GHz
Characteristic 50 Ω
Switching Time 6us (Typical)
Input Power 24 dBm (Max)
Connector Type 2.40 mm
