5G毫米波气动式屏蔽箱

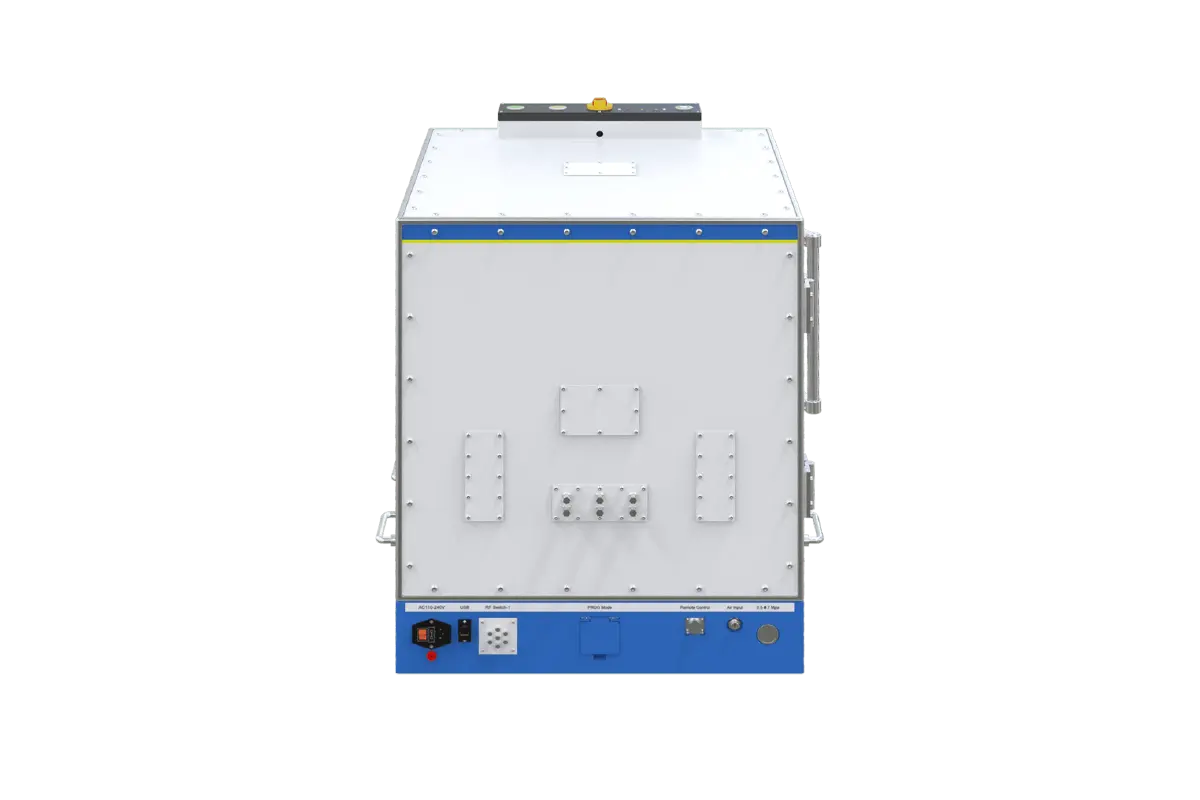

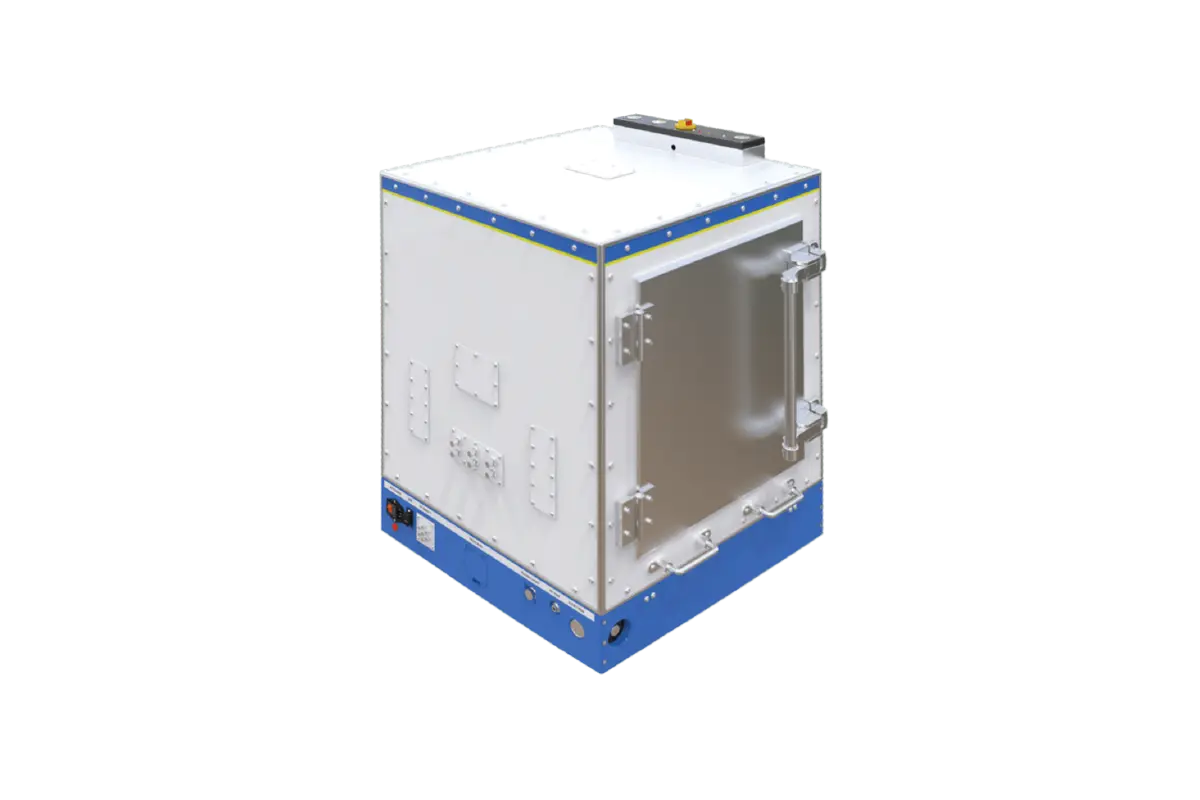

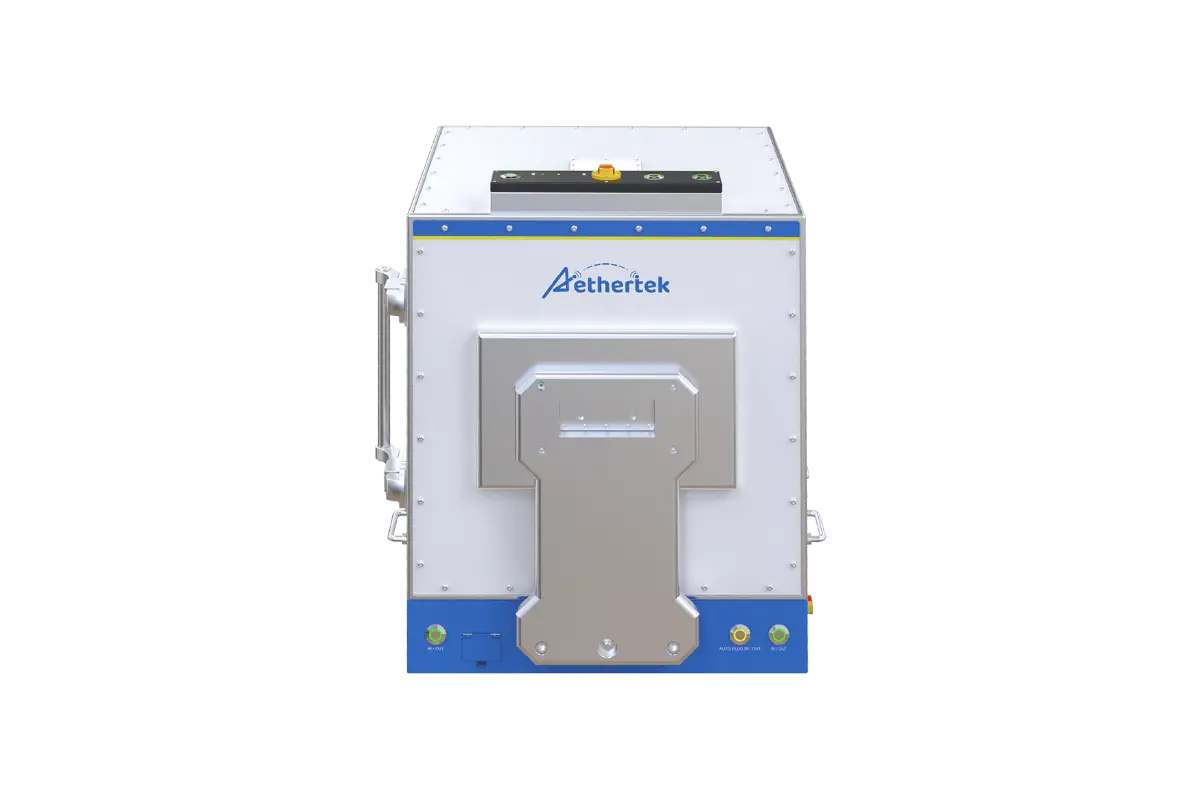

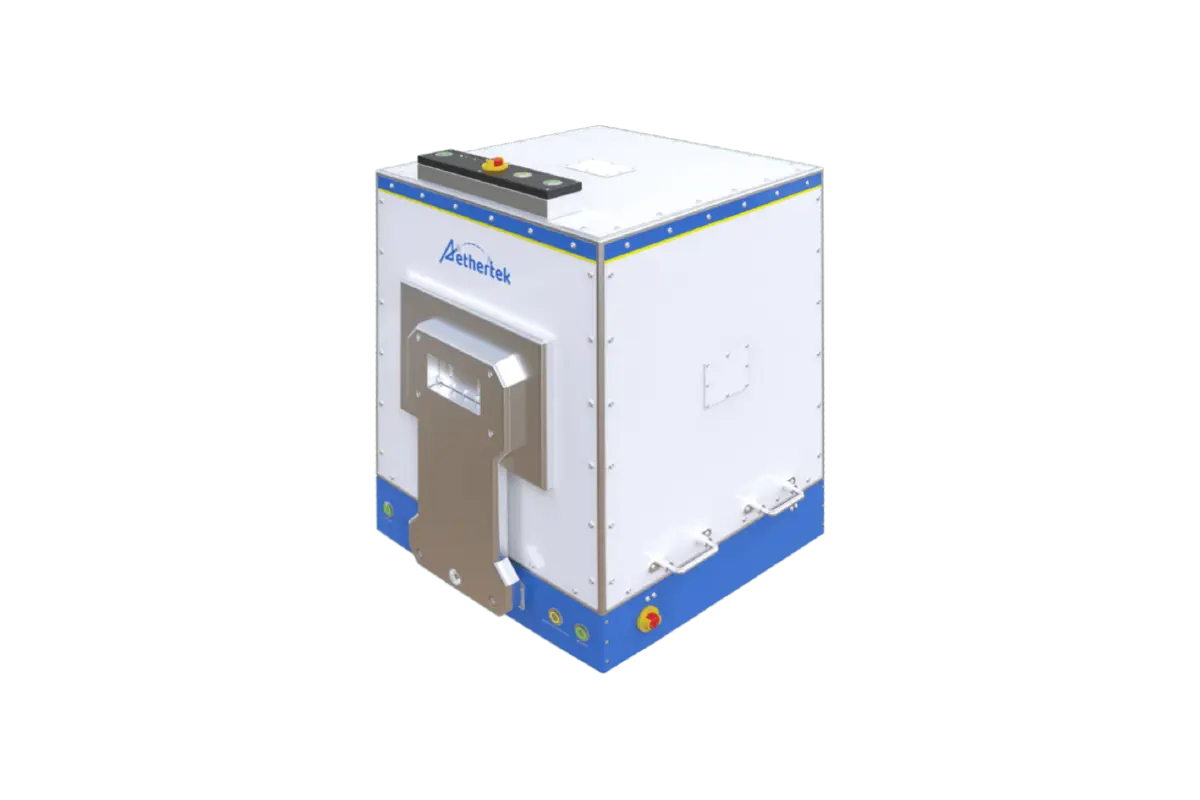

OTA-550 is a medium-scale pneumatic operation shield box optimized for wireless testing from 0.5 GHz to 40 GHz. It offers excellent shielding performance for small to medium-sized devices like smartphones, tablets, and laptops. Customizable with various I/O options, it can be tailored to meet specific device requirements.
特点
- 专为 sub-6 和毫米波测试而设计
- 从 0.5 GHz 到 40 GHz 可靠的射频屏蔽
- 针对大量生产测试要求进行了优化
- 自动化和手动生产线设置的气动操作门
- 可客制的 I/O接口
外型规格
| 外尺寸 | 738x707x745(mm) |
| 内尺寸 | 550x550x550(mm) |
| 操作门尺寸 | 350×200(mm) |
| 重量 | 约50（公斤） |
