0.5-40 GHz

RF TestShield Box

5G mmWave Pneumatic shield box

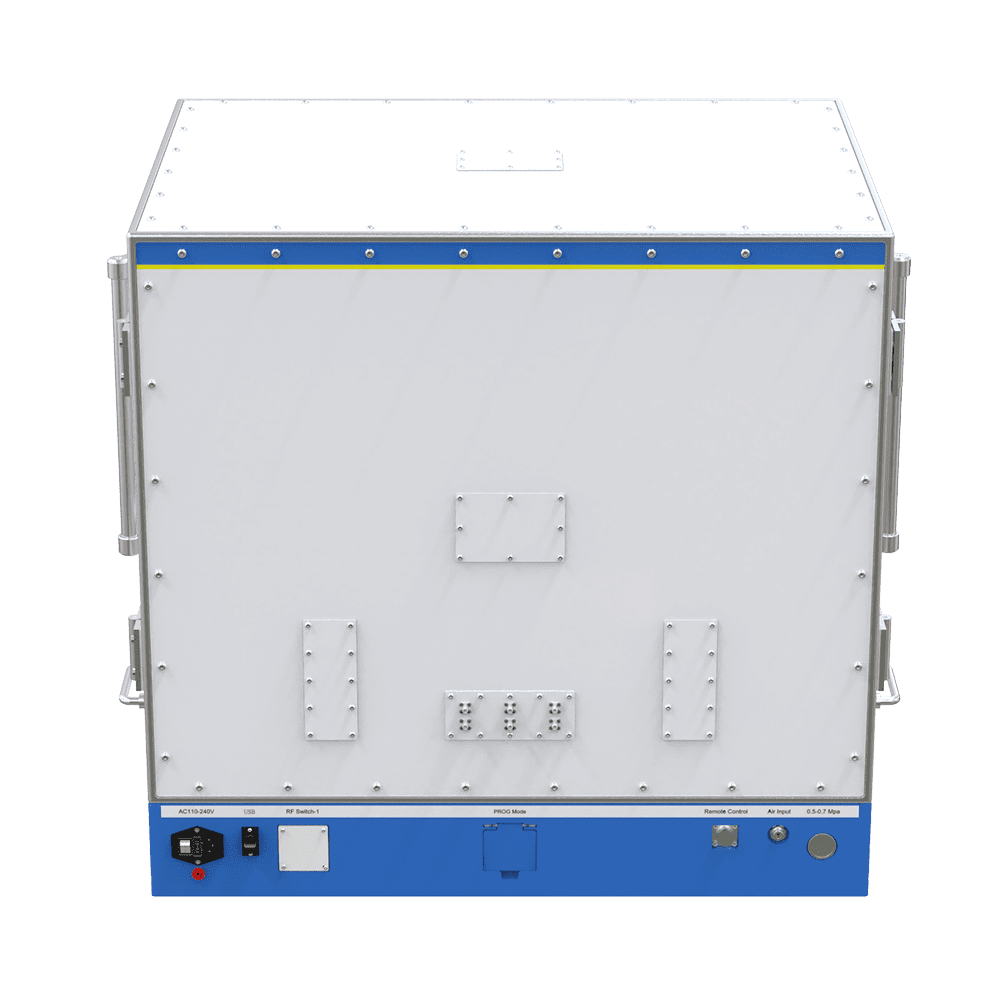

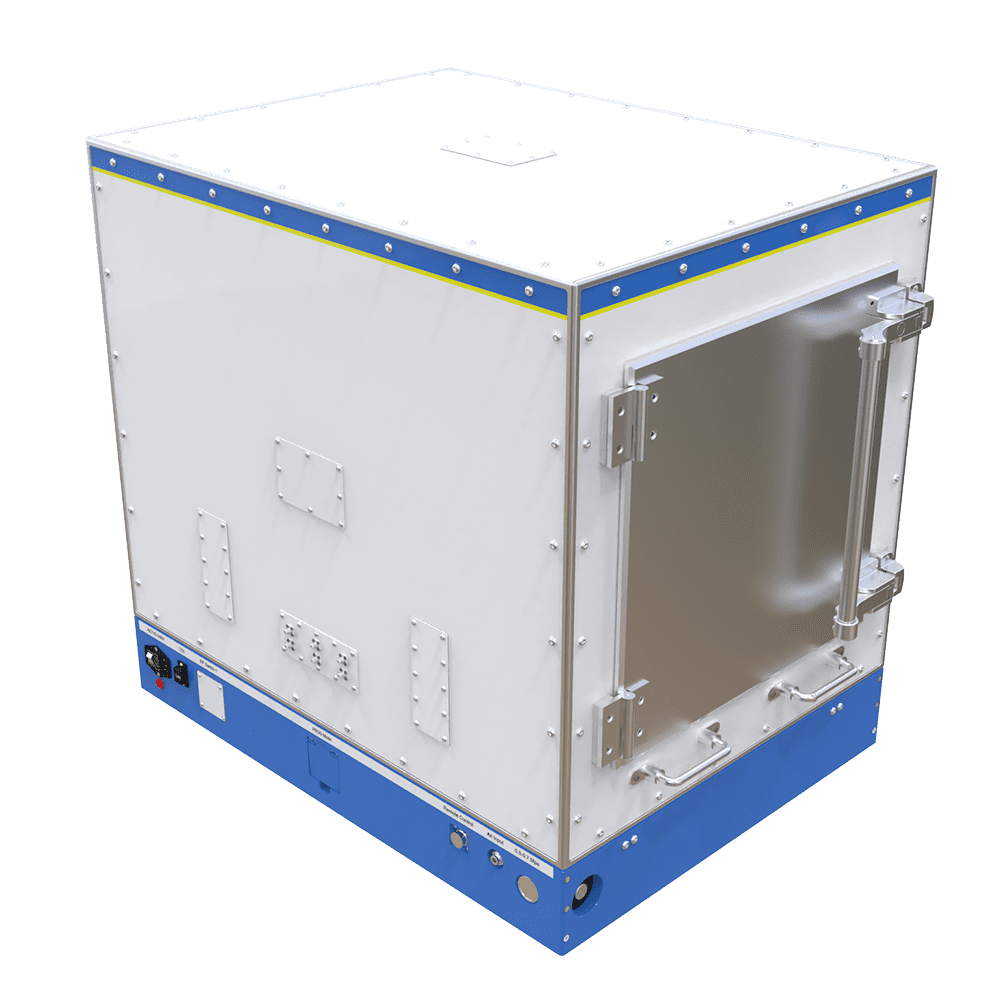

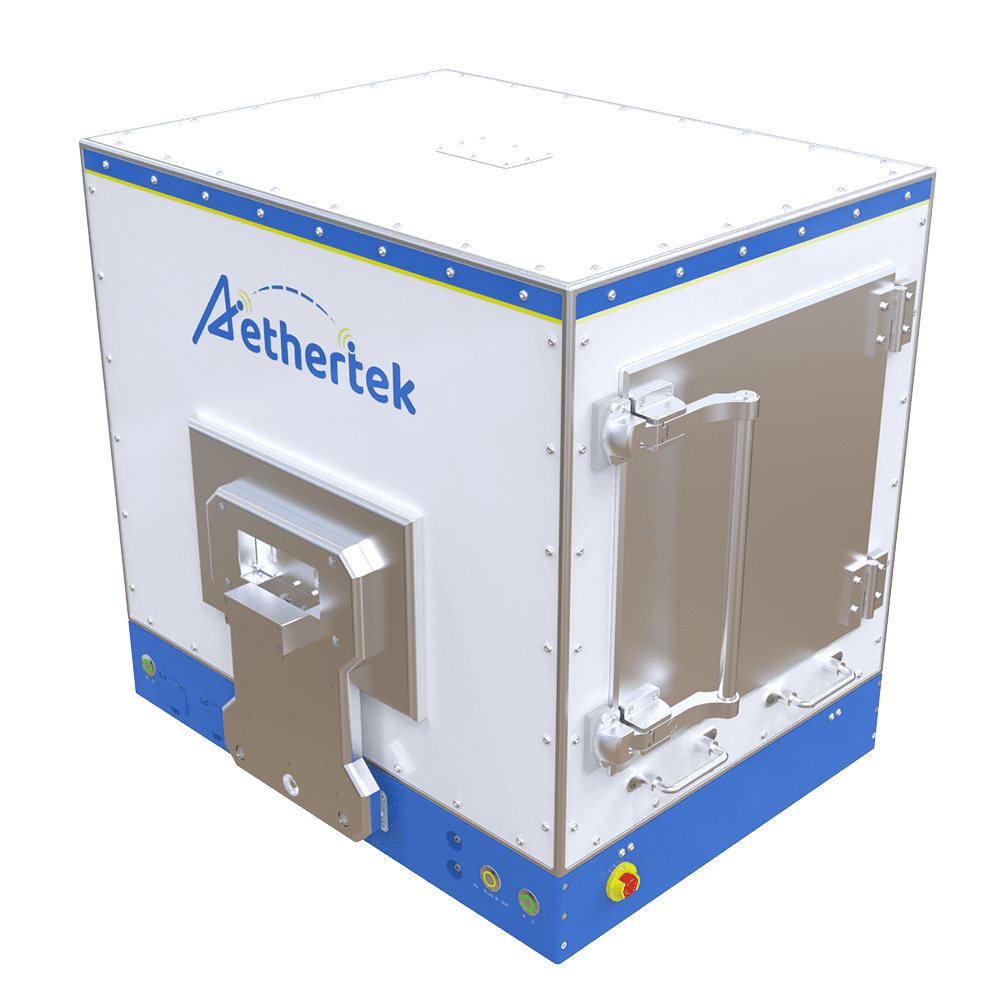

OTA-750 is a large scale pneumatic operation shield box optimized to perform 5G tests between 0.5 GHz to 40 GHz with excellent shielding performance on larger devices such as tablets, laptops, and desktop. OTA-750 can be customized and expanded to meet device requirements.


  • Designed for sub-6 & mmWave testing
  • Reliable RF shielding from 0.5 GHz to 40 GHz
  • Optimized for mass production testing requirements
  • Pneumatic operation door for both automation & manual production line setup
  • Customizable I/O interface

Mechanical Specifications

Outer Dimension750x958x800(mm)
Inner Dimension550x750x600(mm)
Operation Door Dimension350×200(mm)
WeightApprox. 60(kg)
