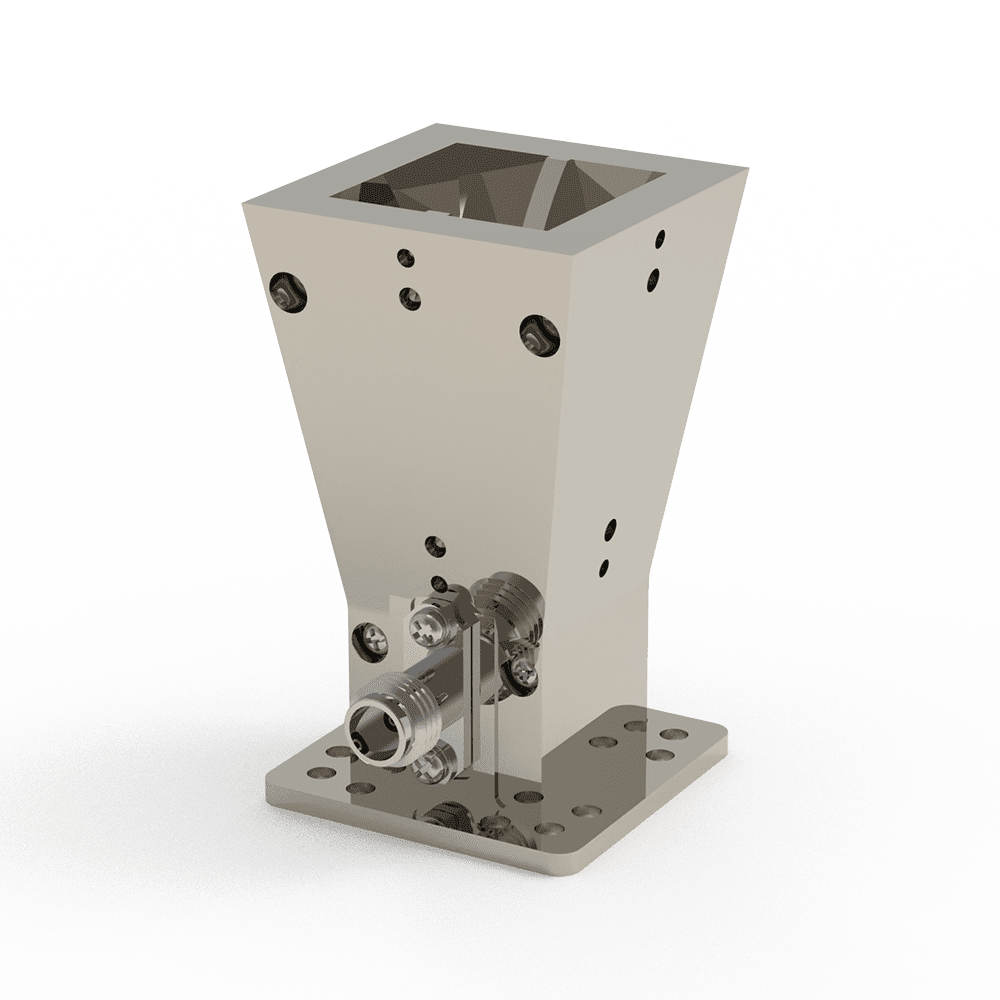

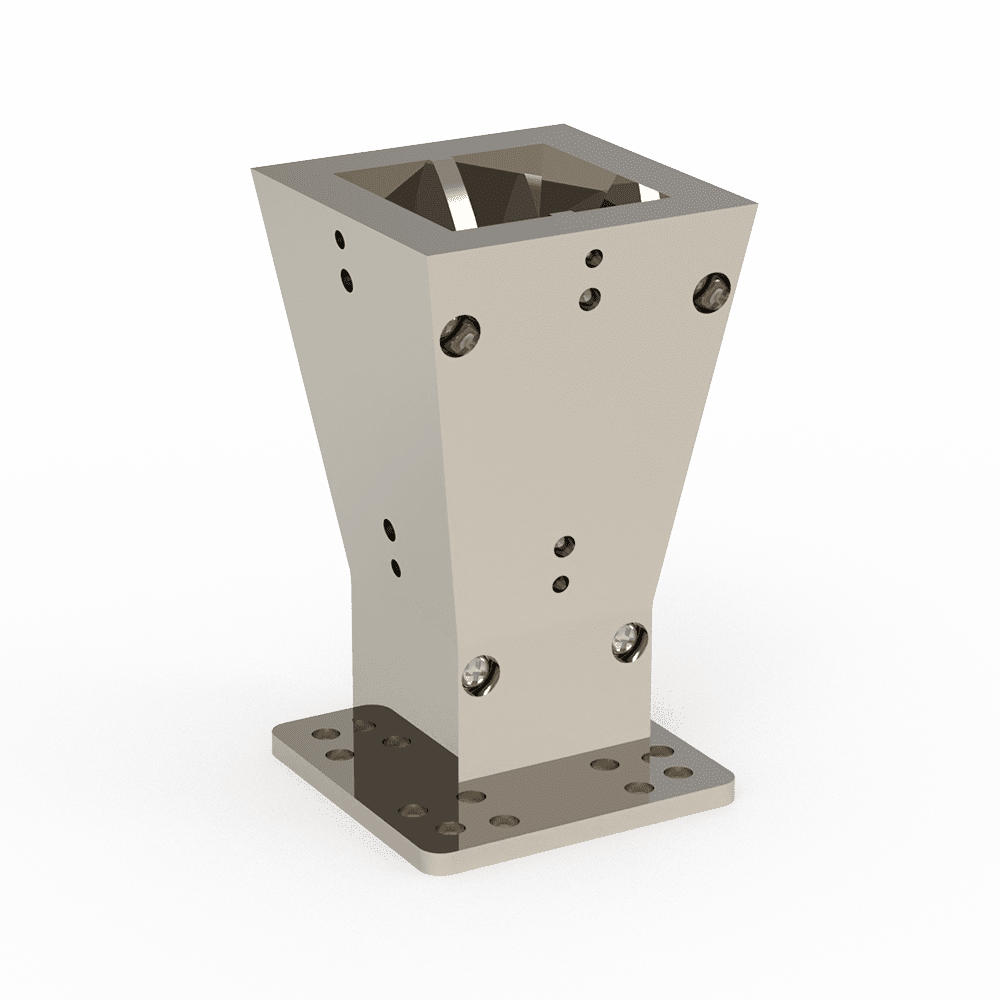

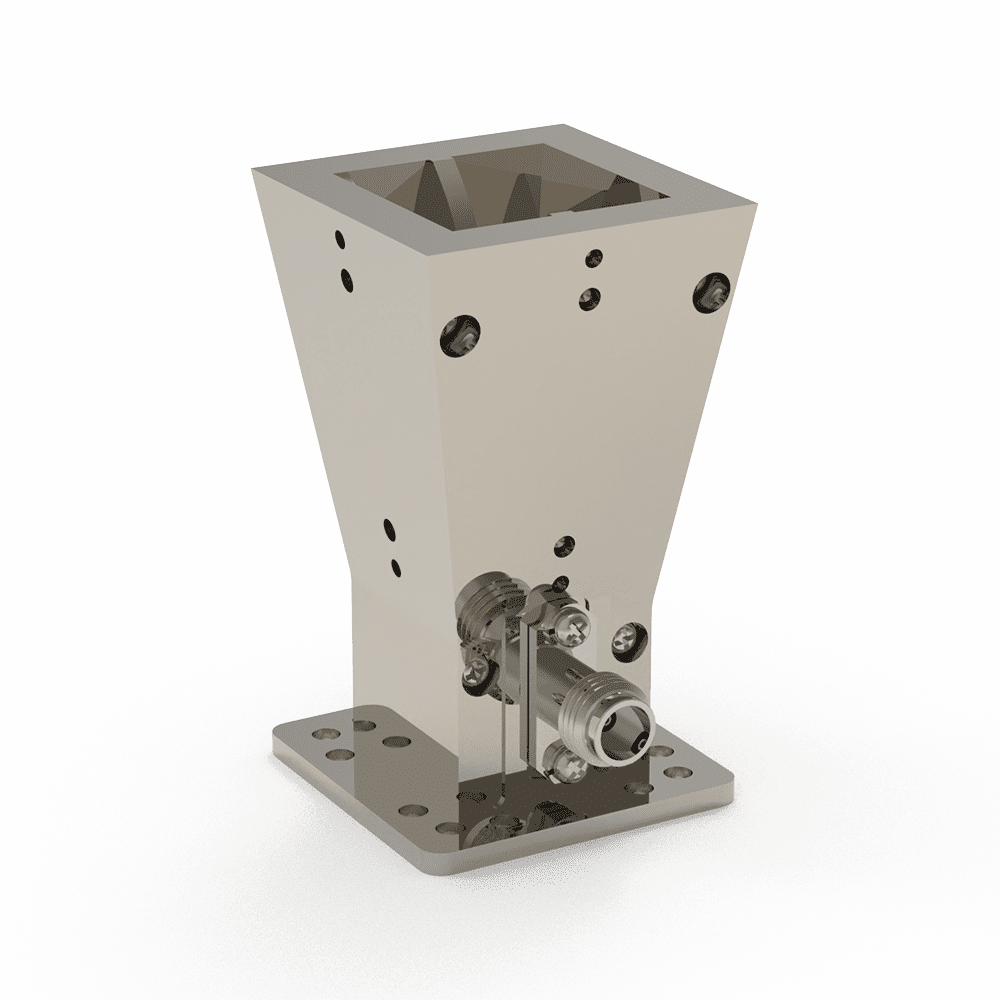

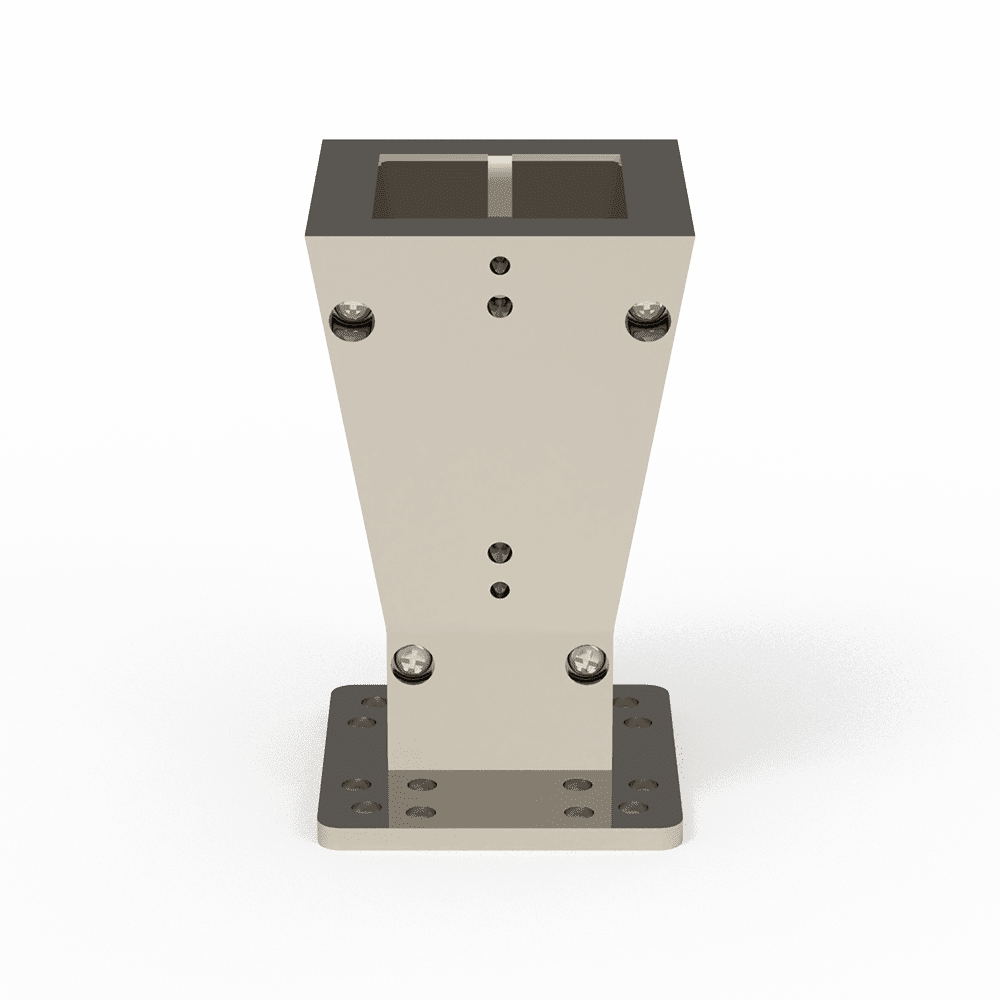

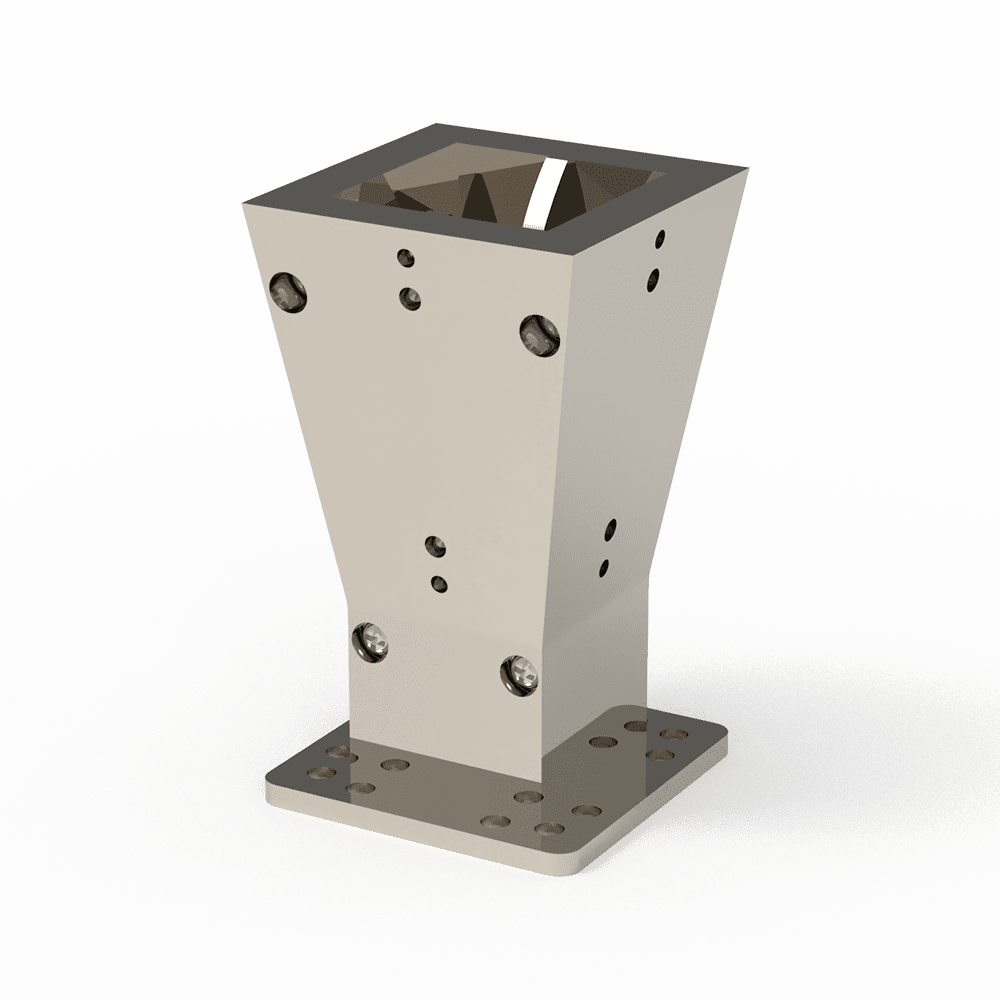

Model J is a single-pol broadband Horn Antenna with frequency range from 24GHz~ 50GHz. It is suitable for 5G mmWave test.
Feature
- Operation frequency from 24.25GHz to 43.5GHz
- 2.4mm Female RF interface
Specification
Frequency Range | 24~ 50 GHz |
Dimensions (mm) | 30x30x52 |
VSWR | 2:1 typical (Maximum 2.5:1) |
RF Connector | 2.4mm |
