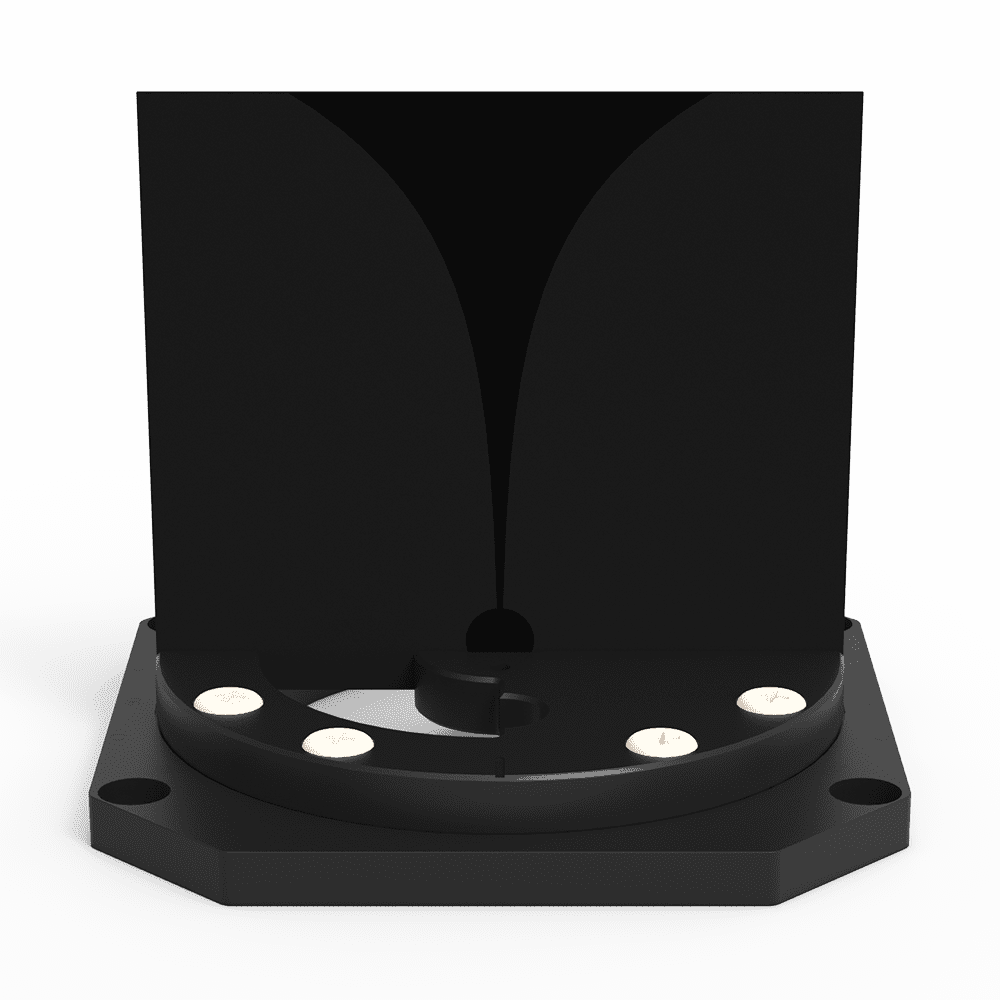

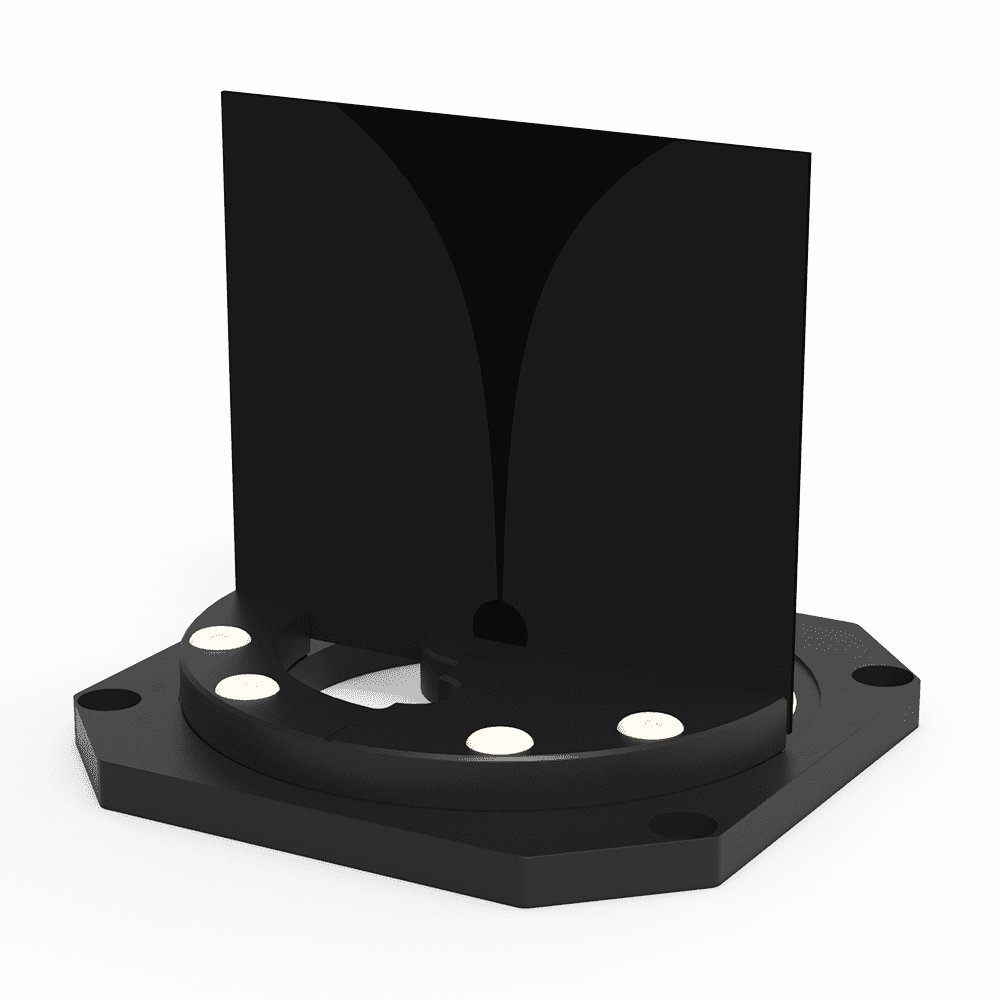

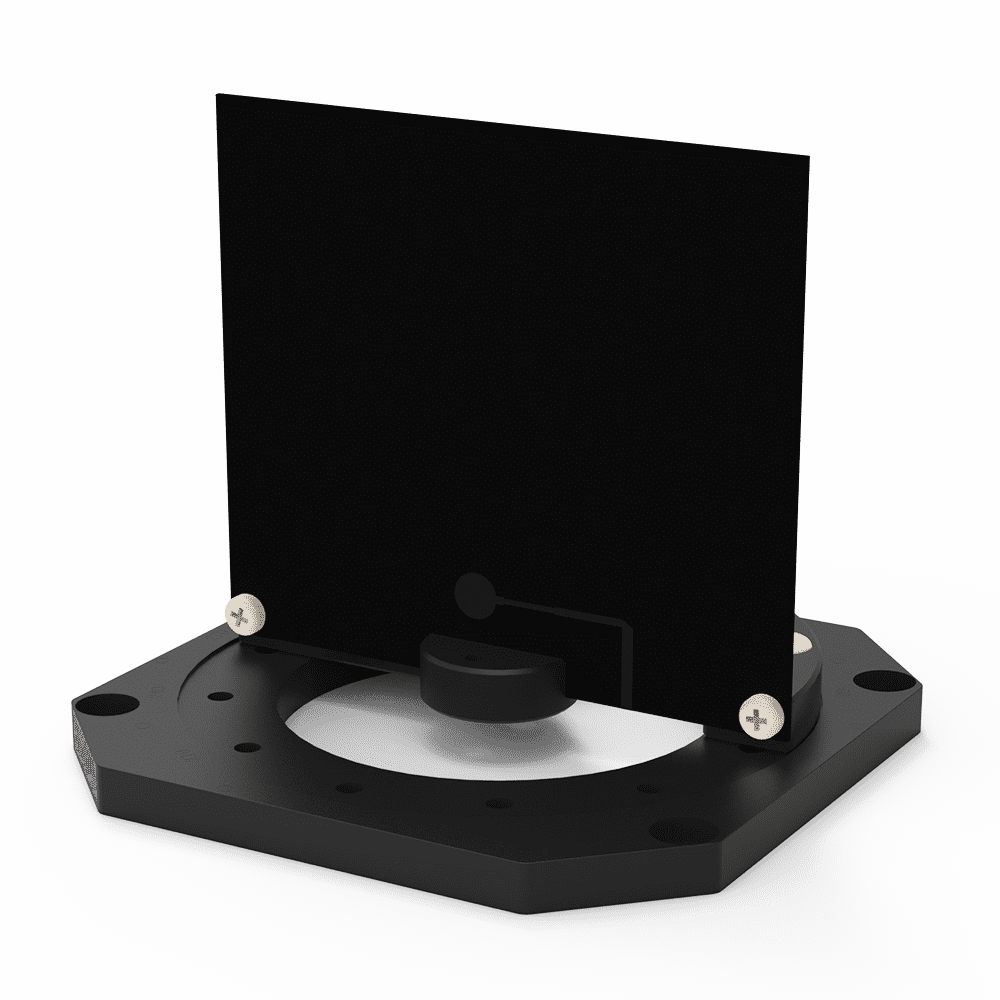

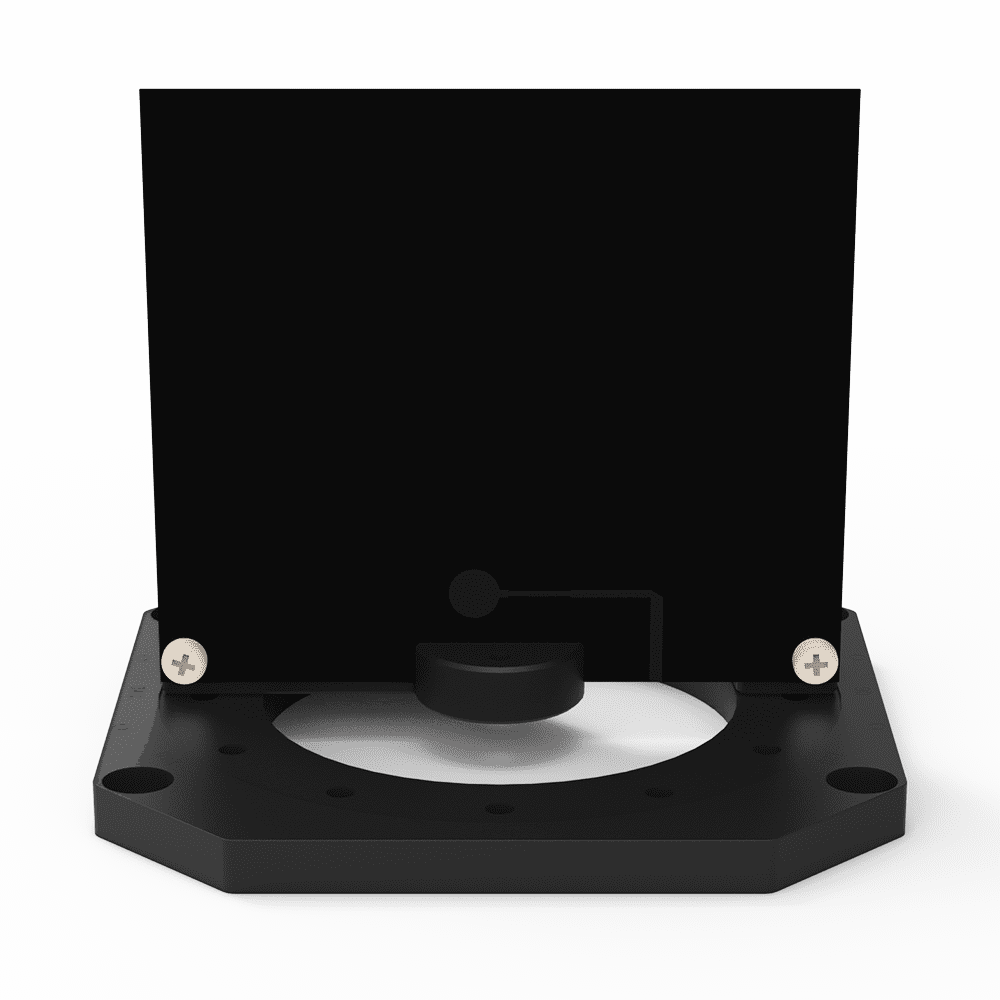

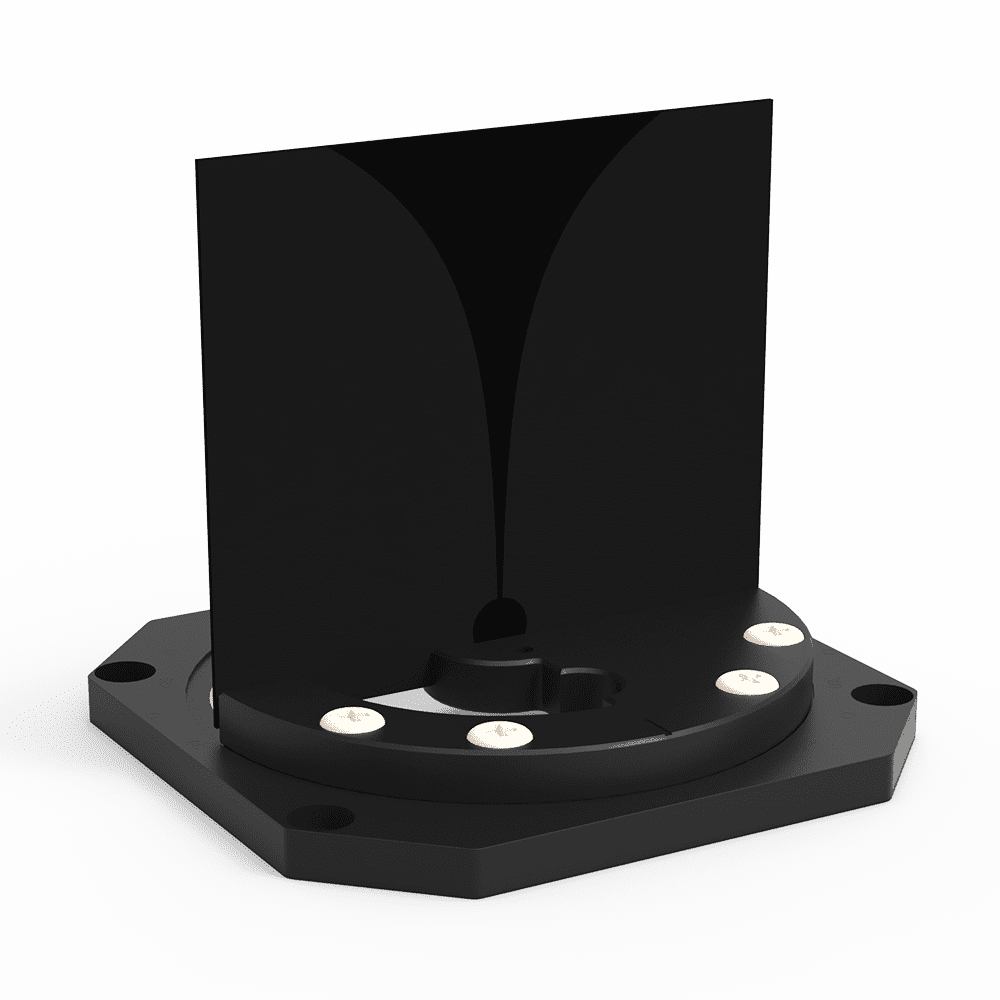

SPV Antenna is designed for receiver sensitivity testing, transmitter radiated power testing, and over-the-air testing for 5G FR1, LTE, and GNSS. It covers a wide bandwidth frequency from 2 GHz~7.2 GHz, and is suitable for testing inside a shielding space.
Feature
- Operation frequency from 2GHz to 7.2GHz
- Support 2G, 3G, 4G network device
- Support GPS, Bluetooth, Wifi, LTE network device test
- Compact size for small- medium sized shielding box
Specification
| Frequency Range | 2 GHz~7.2 GHz |
| Dimensions (mm) | (L)80 x (W)70, thickness=0.8 |
| VSWR | 2.5:1 |
| RF Connector | SMA-F |
| Antenna Type | SPVA (Single Polarized Vivaldi Antenna) |
