2-8.2 GHz

RF TestPassive Antennas

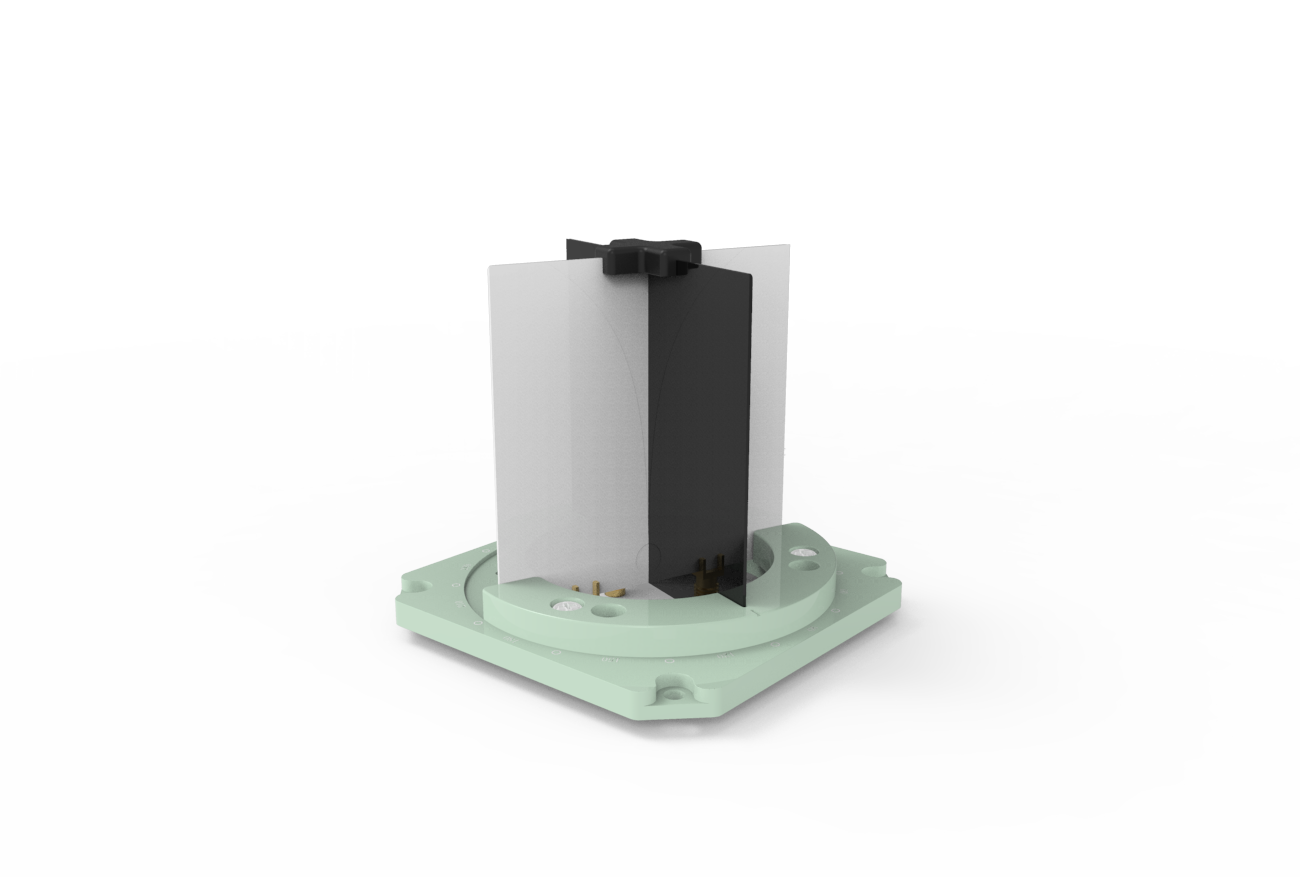

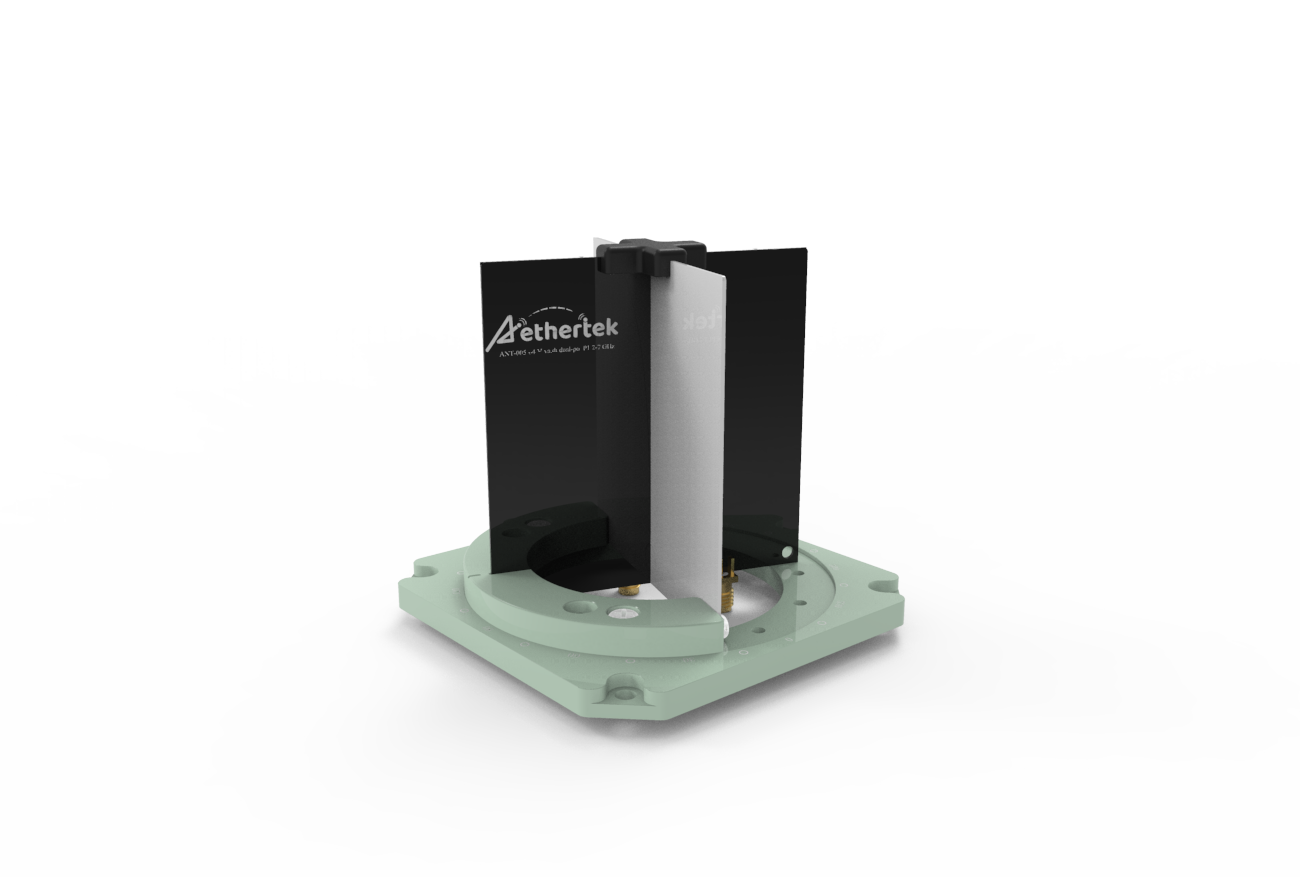

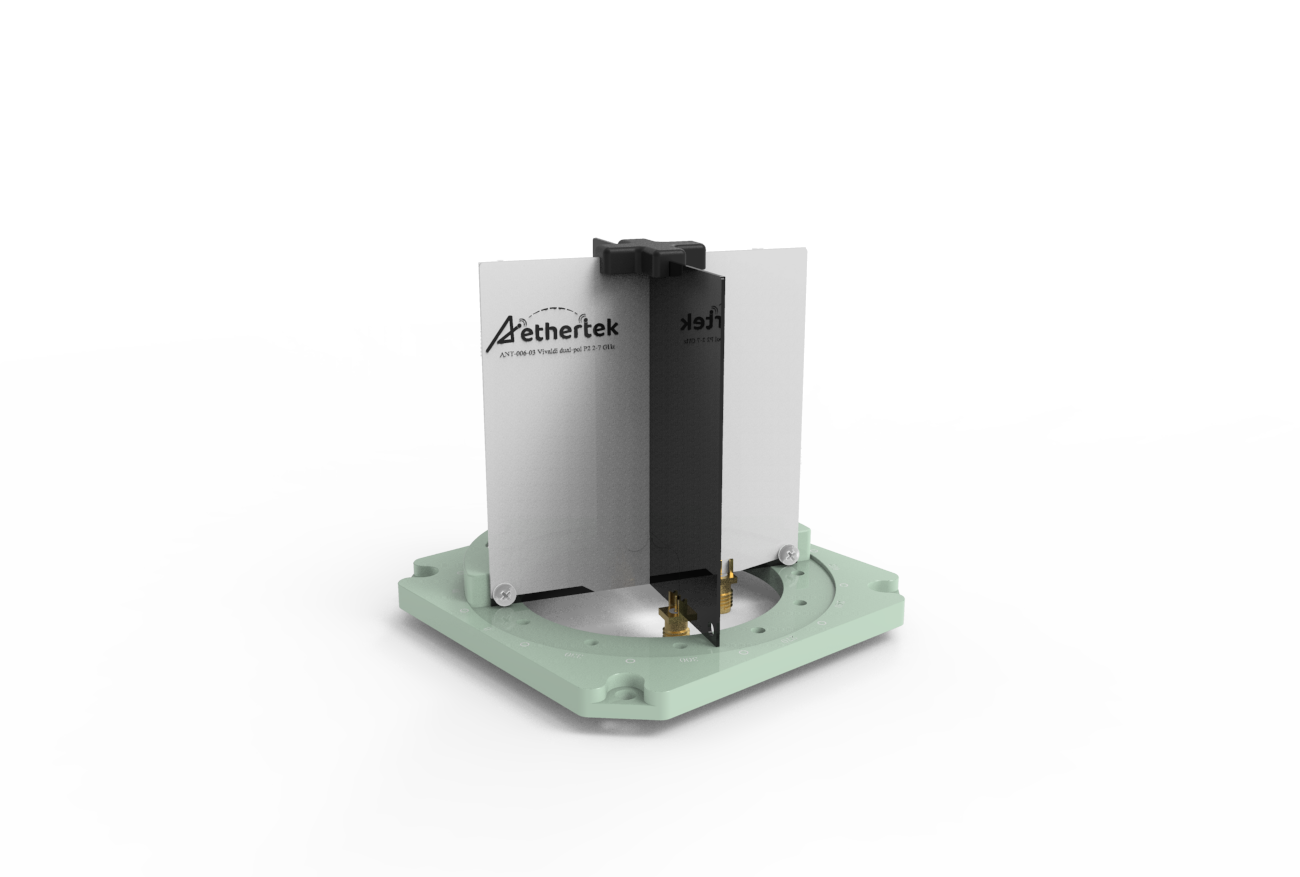

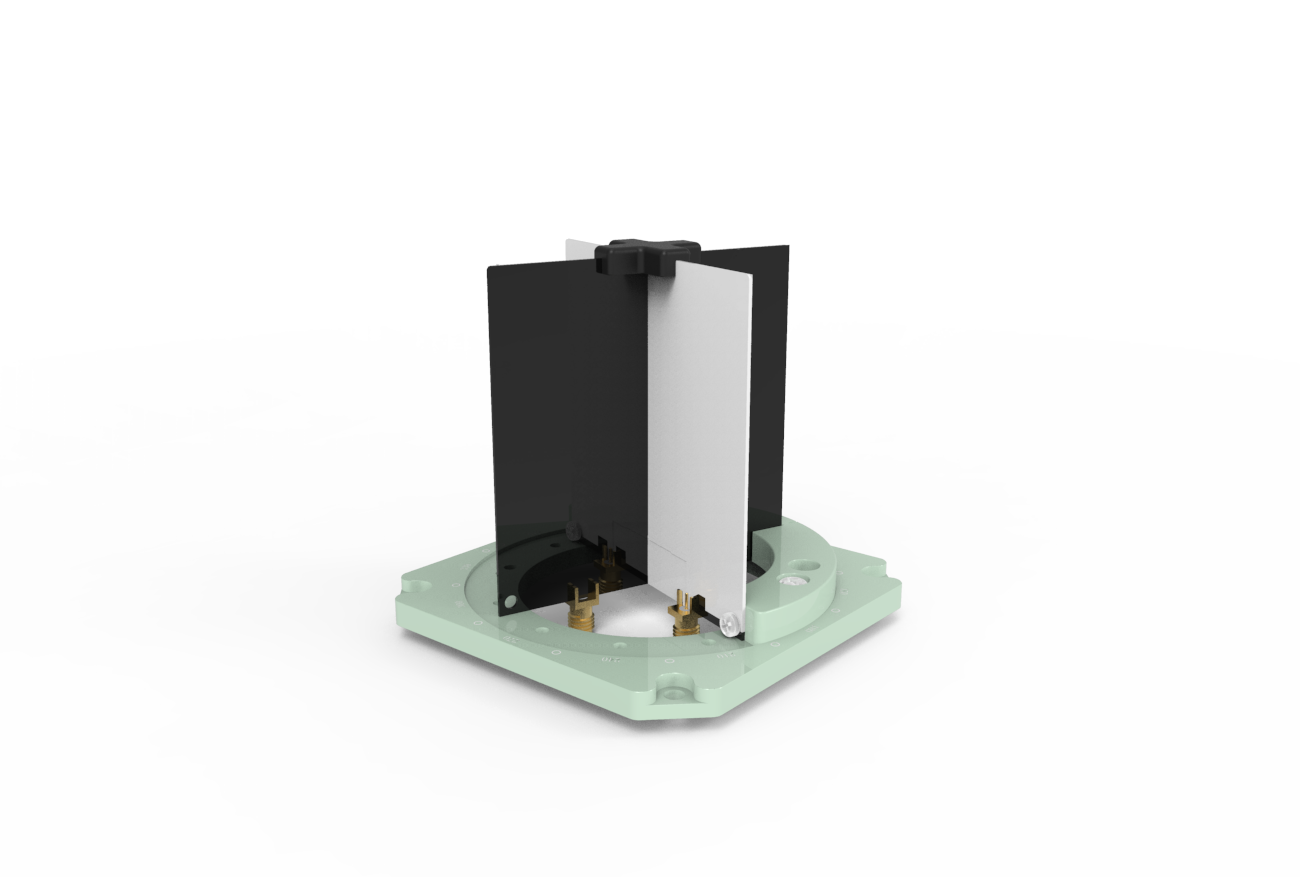

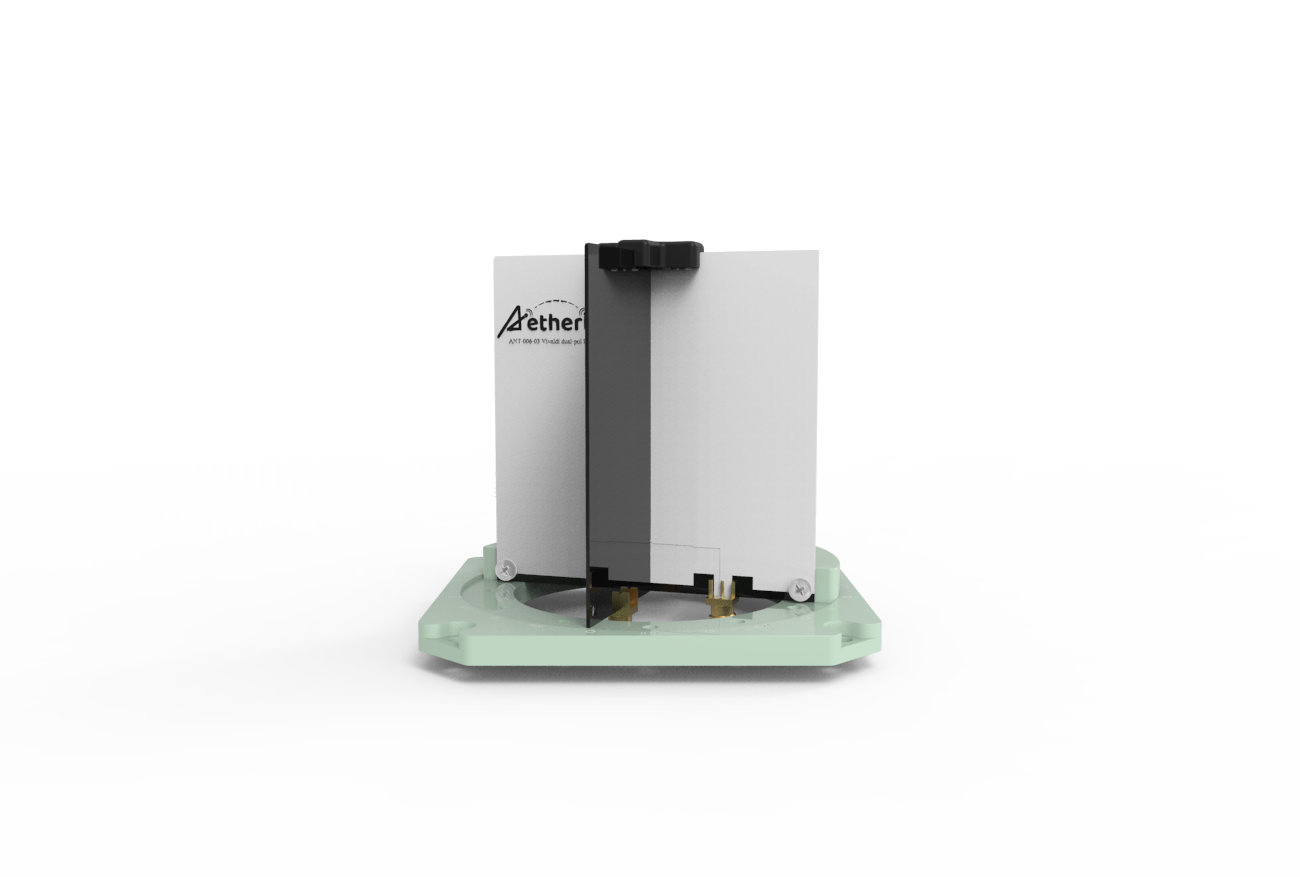

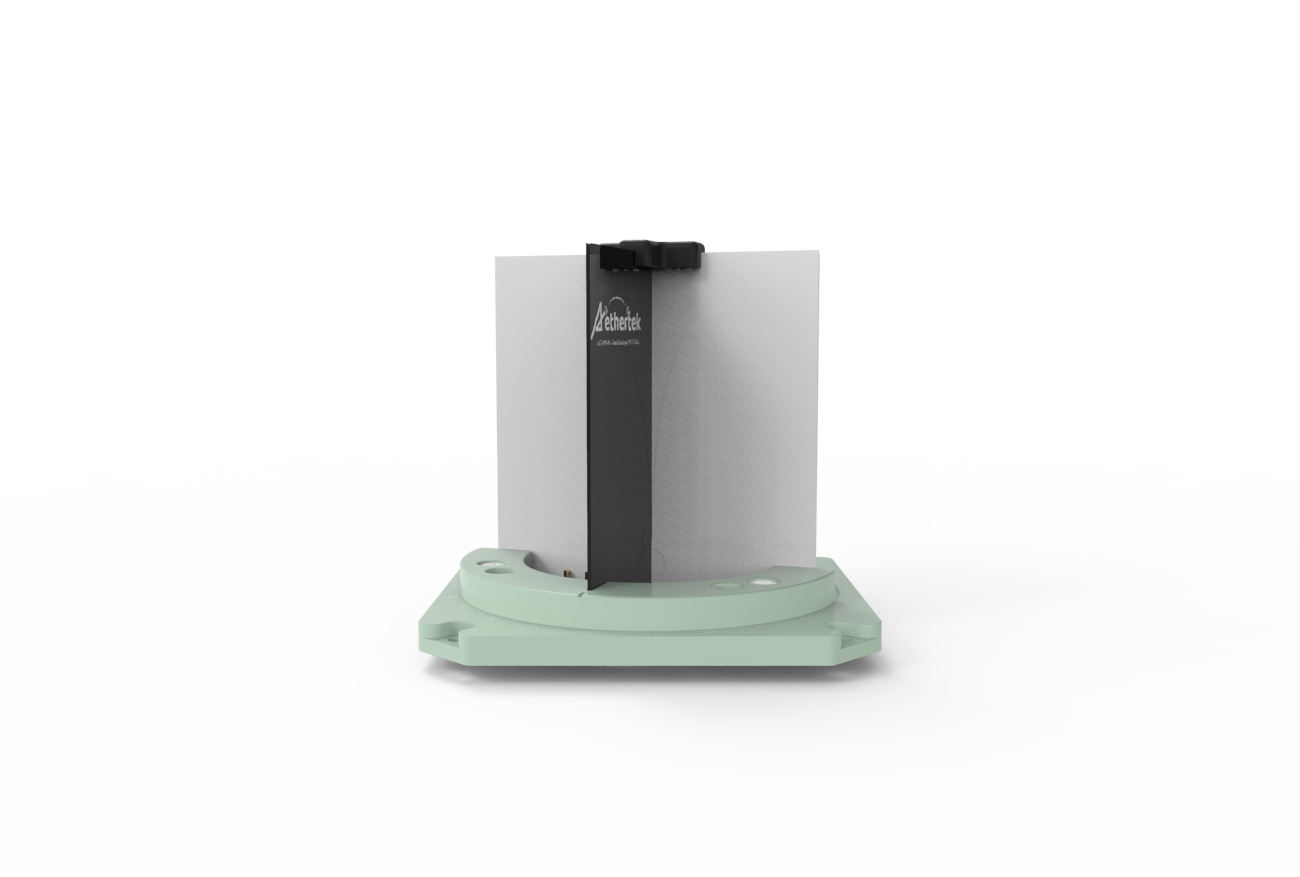

DPV Antenna is designed for receiver sensitivity testing, transmitter radiated power testing, and over-the-air testing for 5G FR1, WLAN, PDA, Bluetooth, LTE, and GNSS. It covers a wide bandwidth frequency from 2 GHz~8.2 GHz, and is suitable for testing inside a shielding space.


  • Operation frequency from 2GHz to 8.2GHz
  • Support 2G, 3G, 4G network device
  • Support GPS, Bluetooth, Wifi, LTE network device test
  • Compact size for small- medium sized shielding box


Frequency Range2GHz~8.2GHz
Dimensions (mm)(L)80 x (W)80, thickness=0.8
VSWR2.5:1 (Typical, Maximum @2GHz)
RF ConnectorSMA-F
Antenna TypeDPVA (Dual Polarized Vivaldi Antenna)
