Horn Antenna C

24.25-43.5 GHz

Passive Antennas RF

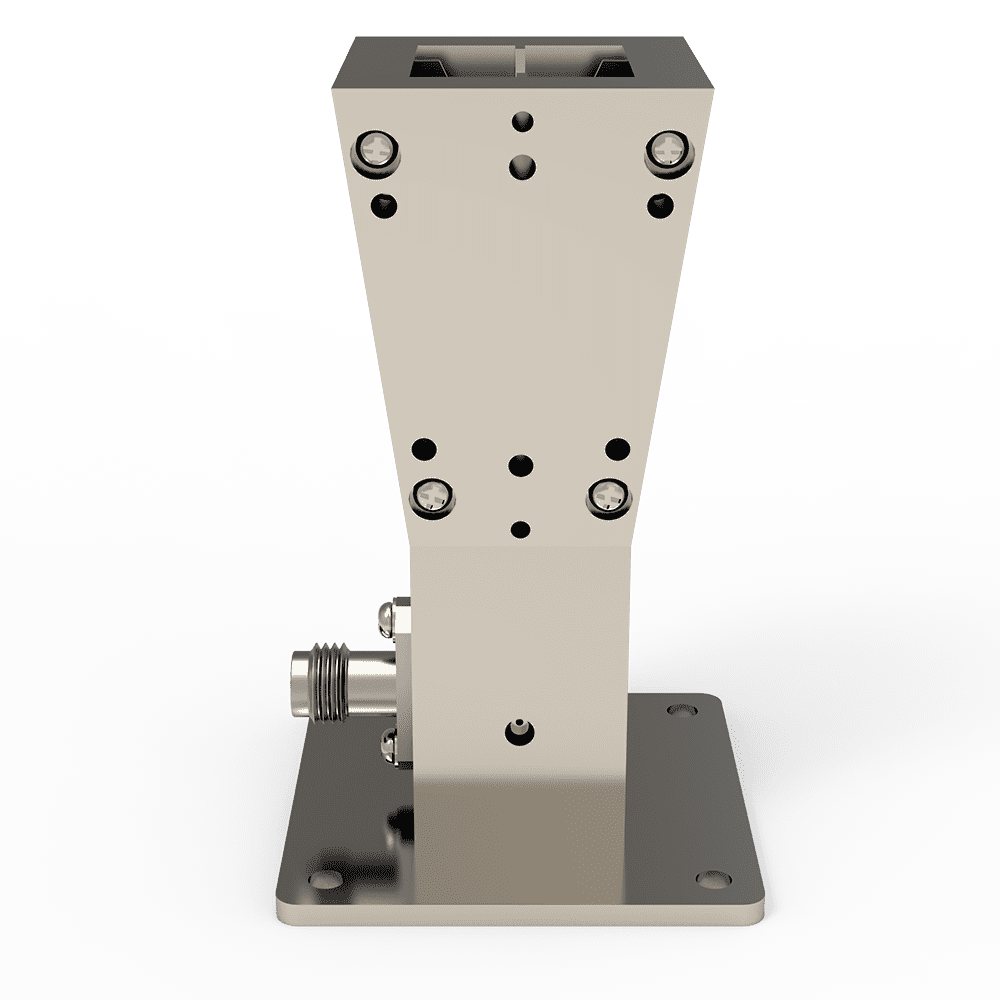

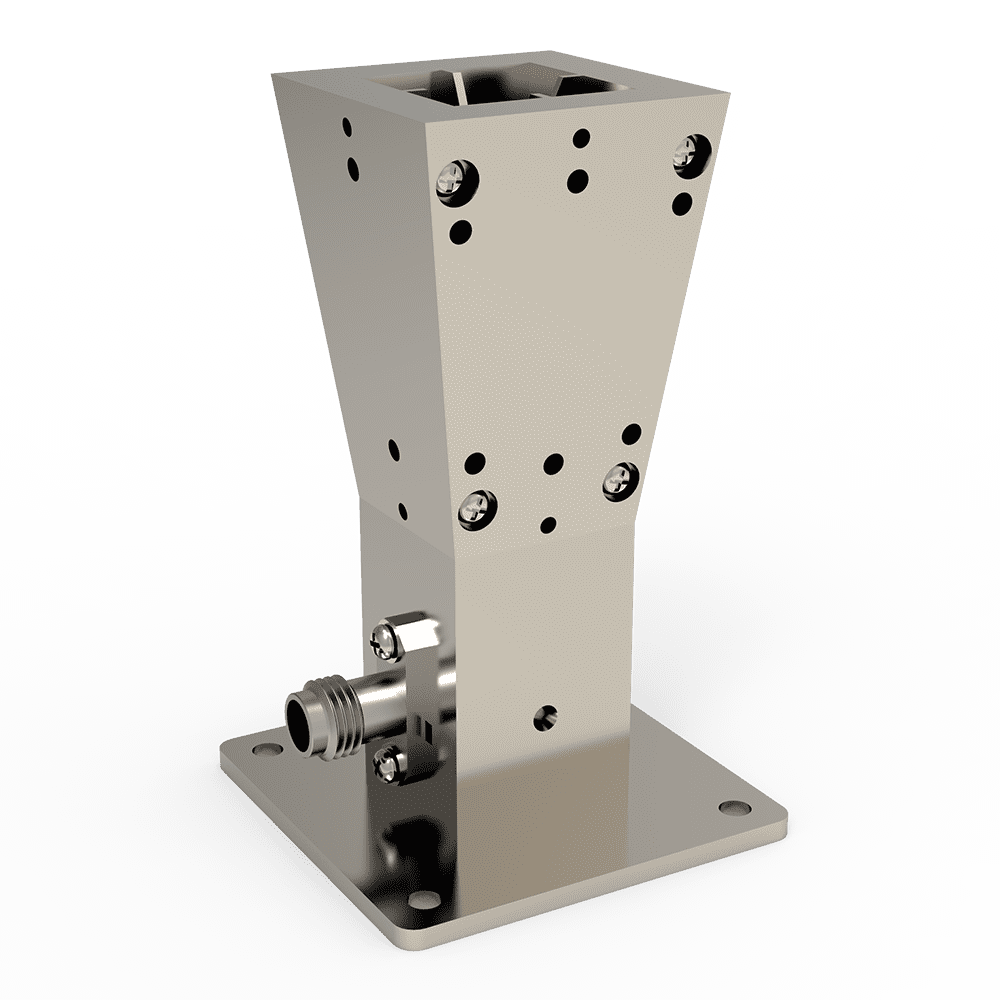

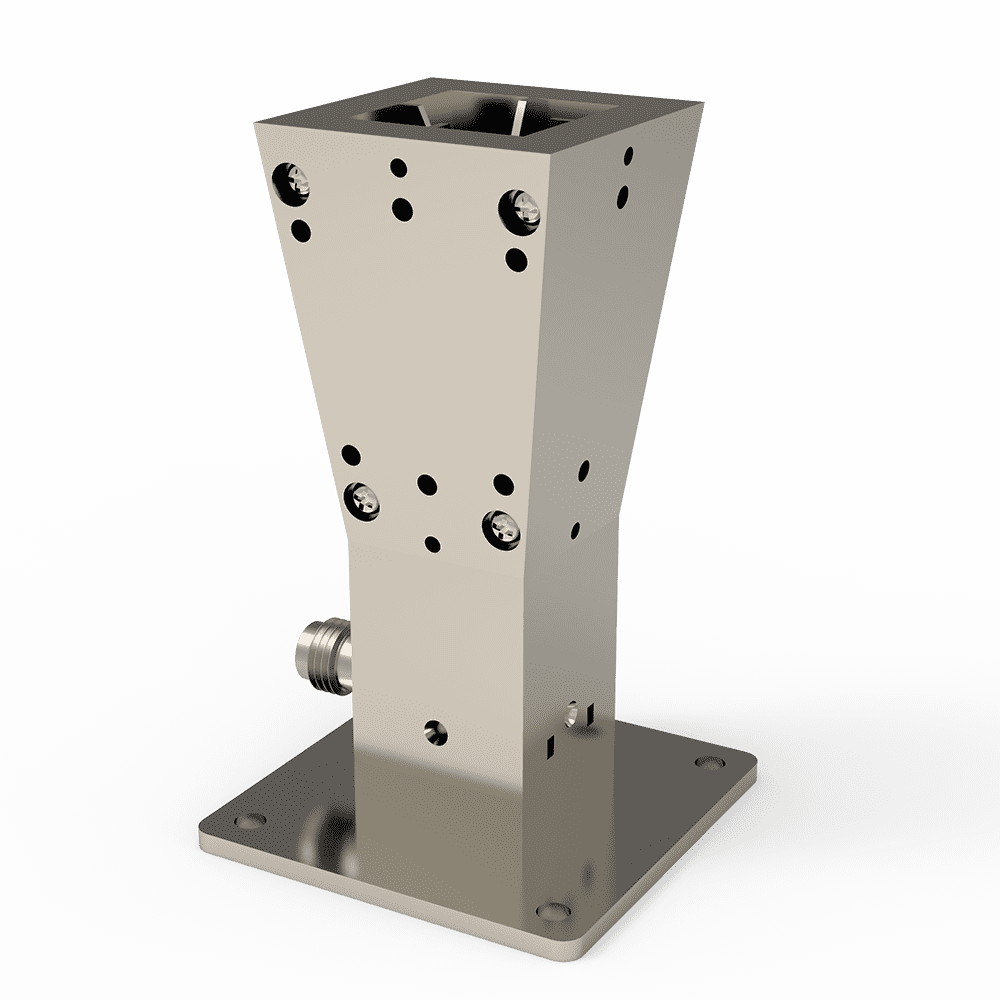

Model C is a dual-pol broadband Horn Antenna with frequency range from 24.25 GHz~ 43.5GHz. It is suitable for 5G mmWave test.

Feature

  • Operation frequency from 24.25GHz to 43.5GHz
  • 2.4mm Female RF interface

Specification

Frequency Range24.25~43.5 GHz
Dimensions (mm)40x40x66
VSWR<2
RF Connector2.4mm
