DPV

0.7-7.2 GHz

Passive Antennas RF

DPV Antenna is designed for receiver sensitivity testing, transmitter radiated power testing, and over-the-air testing for 5G FR1, WLAN, PDA, Bluetooth, LTE, and GNSS. It covers a wide bandwidth frequency from 0.7GHz~7.2 GHz, and is suitable for testing inside a shielding space.

Feature

  • Operation frequency from 700MHz to 7.2GHz
  • Support 2G, 3G, 4G network device
  • Support GPS, Bluetooth, Wifi, LTE network device test
  • Compact size for small- medium sized shielding box

Specification

Frequency Range0.7GHz~7.2GHz
Dimensions (mm)(L)100 x (W)120, thickness=0.8
VSWR3:1
RF ConnectorSMA-F

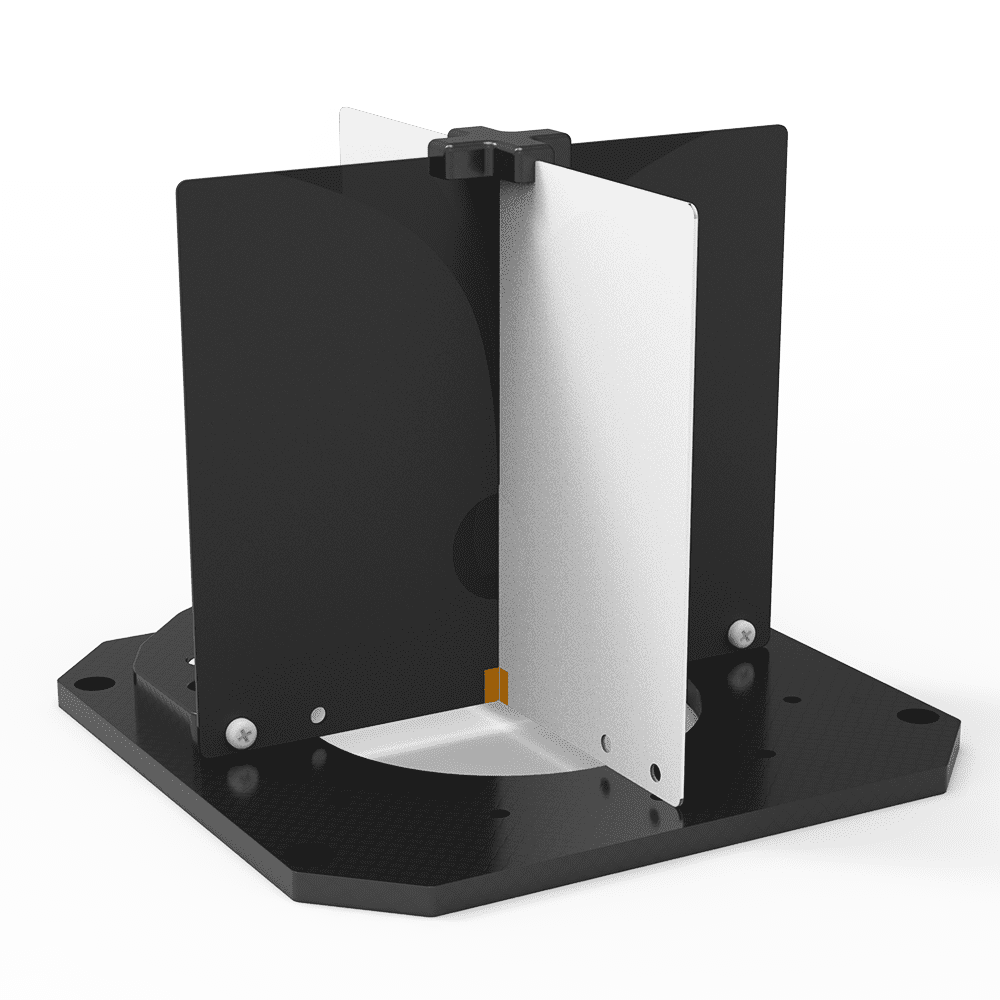

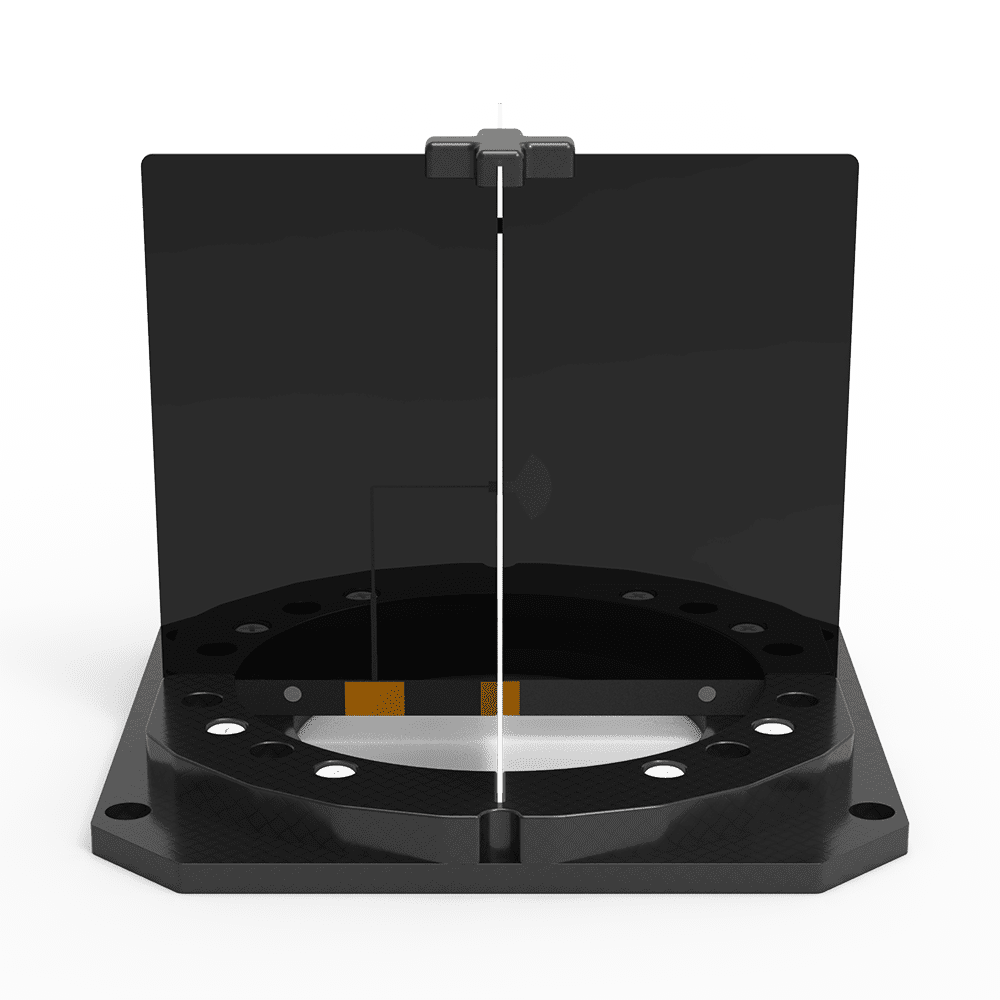

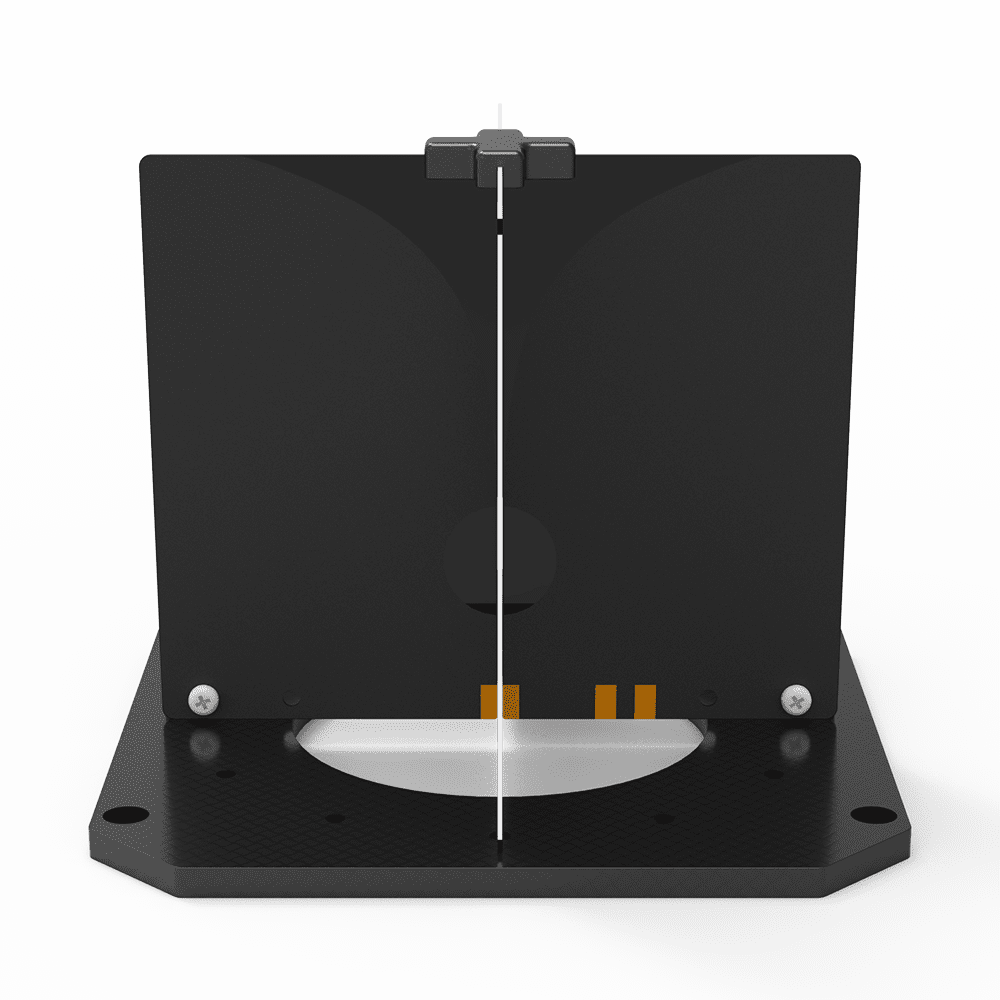

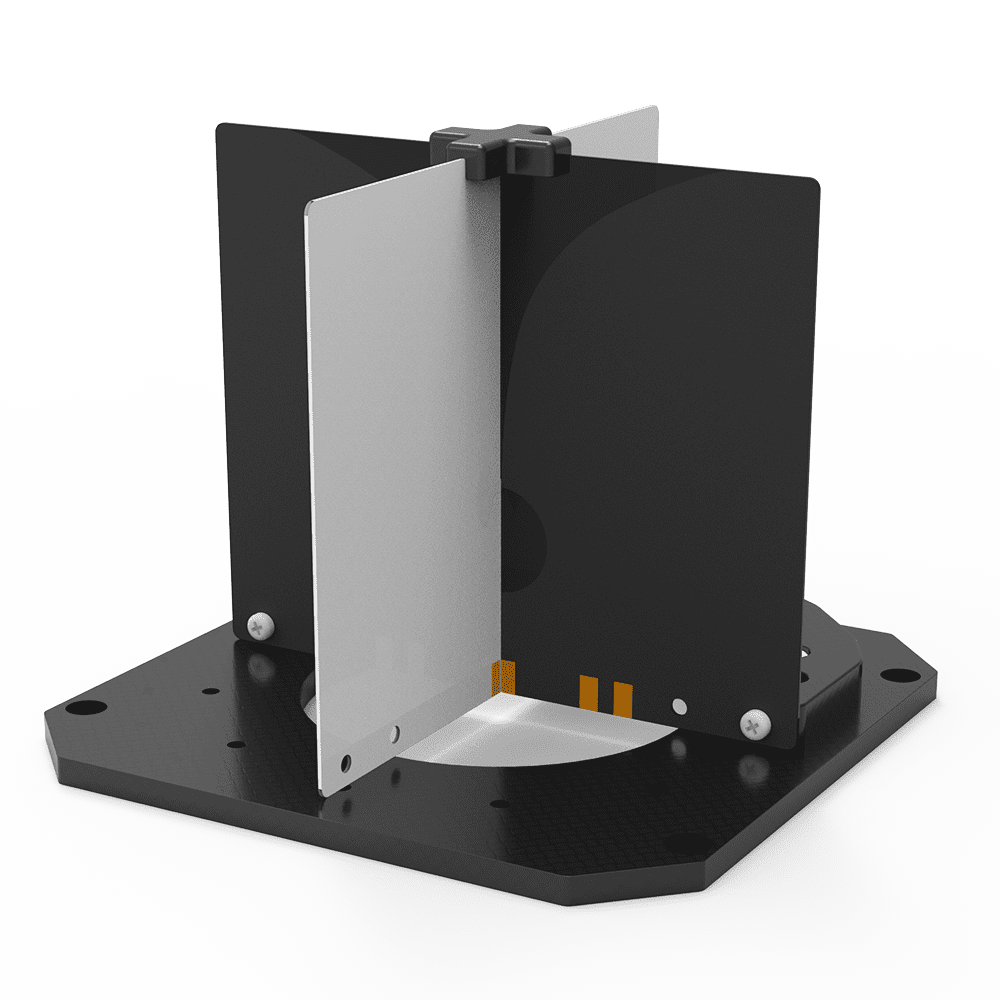

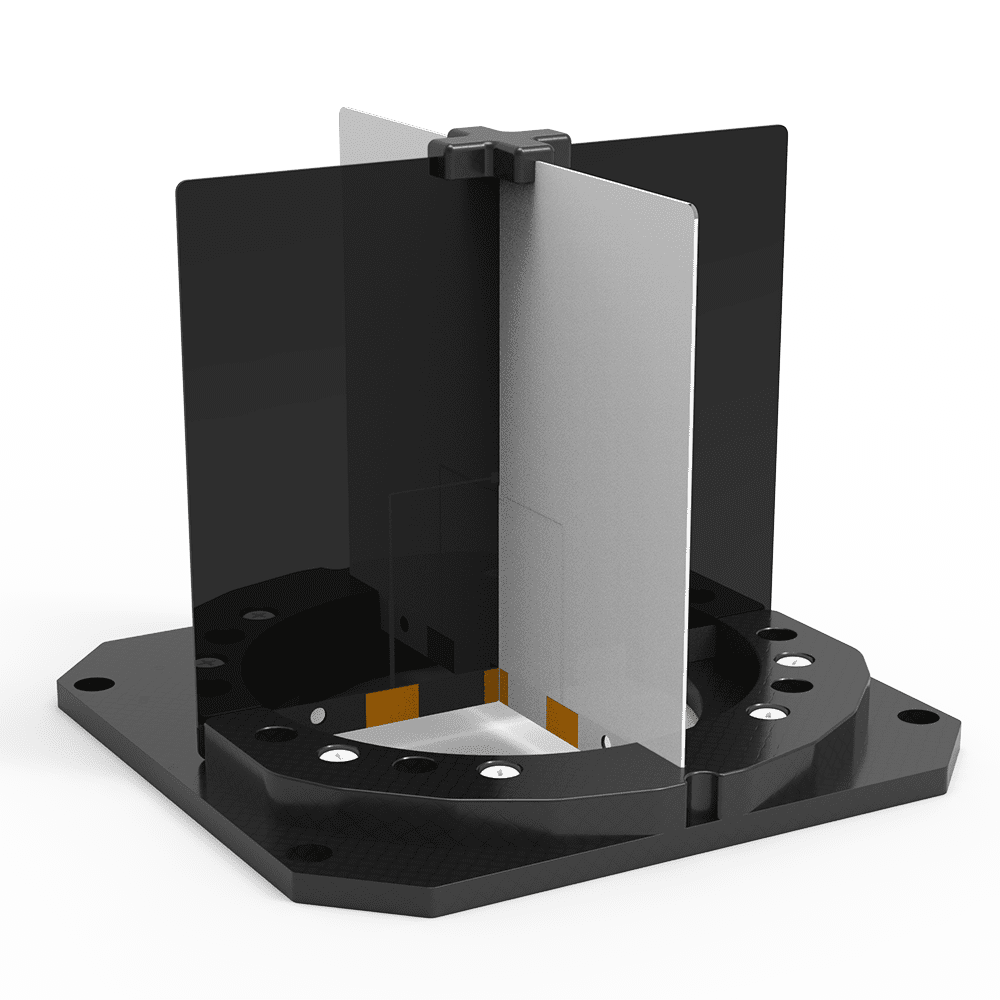

Antenna TypeDPVA (Dual Polarized Vivaldi Antenna)
